Single Phase LCD Energy Meter – DIN Rail kWh Counter with Reset, Voltage & Power Monitoring 230V

Single Phase LCD Energy Meter – DIN Rail kWh Counter with Reset, Voltage & Power Monitoring 230V

Rated 4.5 out of 5

£11.49 – £17.99

Color
Size	AC110V 50HzAC110V 60HzAC230V 50HzAC230V 60Hz Clear

Quantity

1005005681993572

Categories:

Home Automation, Smart Energy Meter, Smart Home

Product details

Single Phase LCD Energy Meter – DIN Rail kWh Counter with Reset, Voltage & Power Monitoring 230V

The DDS66X Series energy meters offer a practical, compact, and highly accurate solution for monitoring electrical energy usage in residential, commercial, or industrial applications. Designed for easy installation on a 35mm DIN rail, these digital meters provide a real-time display of essential electrical parameters, including voltage, current, active power, and cumulative energy consumption in kilowatt-hours (kWh).

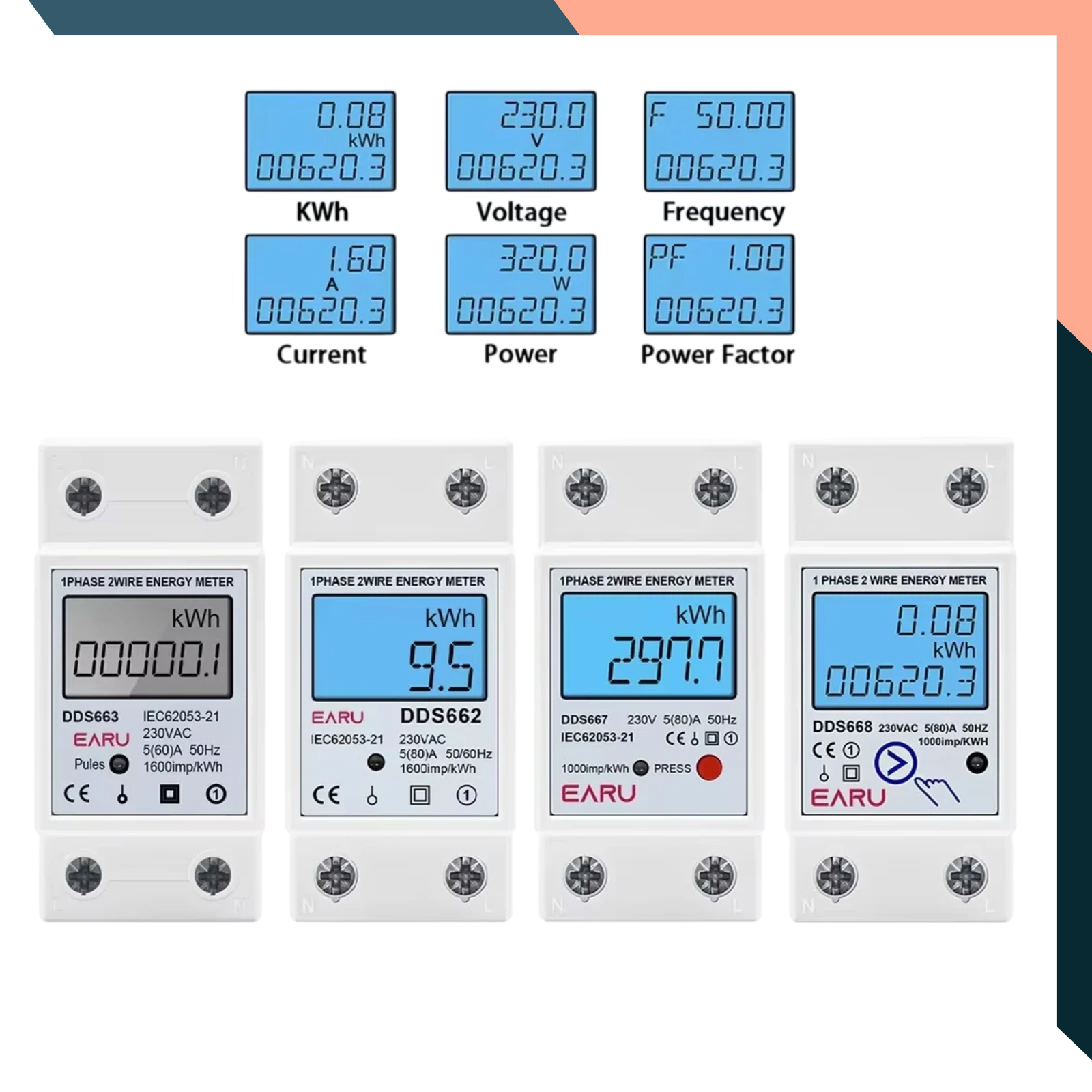

Models in the series include DDS662, DDS662-L, DDS663, DDS667, and DDS668. Each version is tailored to different voltage and frequency requirements, making the series versatile and adaptable to various regional standards:

DDS662 / DDS662-L: Supports AC 230V 50Hz/60Hz and AC 110V 50Hz/60Hz
DDS663 / DDS667 / DDS668: Supports AC 230V 50Hz, AC 230V 60Hz, and AC 110V 60Hz

Key Features

Maximum current:
- DDS663: 60A
- DDS662, DDS667, DDS668: 80A
Pulse frequency:
- DDS667 / DDS668: 1000 imp/kWh
- DDS663 / DDS662: 1600 imp/kWh
LED pulse indicator to show meter operation
35mm DIN rail installation for quick mounting
Flexible wiring options: top input/bottom output or vice versa
Manual button to display:
- Total energy (kWh)
- Temporary energy (kWh)
- Voltage
- Current
- Real-time power

Functional Differences by Model

Models DDS662 / DDS663 / DDS662-L

No physical button
No reset function
Temporary kWh cannot be reset
Total kWh is permanent and cannot be reset

Models DDS667 / DDS668

Equipped with a button and reset function
Hold the button for 6 seconds to reset temporary kWh
Total kWh remains unchangeable

DDS668 Additional Feature

Displays both total and temporary energy simultaneously
Always shows two readings at the same time, with at least one being real-time power

Why Choose DDS66X Series?

Whether you need to monitor energy consumption in a small flat or integrate usage tracking into a larger smart system, the DDS66X series provides exceptional value, clarity, and ease of use. Its multifunctional LCD display, reliable measurement capabilities, and flexible installation make it a top choice among electricians and energy-conscious users alike.

Product Images

Item specifics

Weight	10 kg
Dimensions	10 cm
Brand Name	EARUELETRIC
Hign-concerned Chemical	None
Origin	Mainland China
DIY Supplies	ELECTRICAL
Measuring Energy Range	99999.9
Display Type	LCD
Output Voltage	AC 220V
Model Number	DDS662
Certification	CE
Power Supply	AC
Phase	single phase
Rated Voltage	220V
Dimensions	786535mm
Operating Temperature	-10 to 50C
Accuracy Class	±1%
Max Operating Current	50A – 79A
Display 1	Total Energy kWh
Display 2	Temporary kWh
Display 3	Voltage
Display 4	Current
Model 1	DDS667
Model 2	DDS668
Model 3	DDS663
Operating Voltage 1	AC220V/230V
Operating Voltage 2	AC110V
Frequency	50Hz/60Hz
