100A Tuya Wi-Fi Smart Energy Meter | Remote Control & Digital Display | Din Rail Install

The AT2PW 100A Tuya Wi-Fi Din Rail Energy Meter is a versatile and advanced smart switch designed for accurate energy monitoring and control in residential and commercial settings. This smart device supports a range of features to help you manage and optimize your electricity usage efficiently.

Key Features

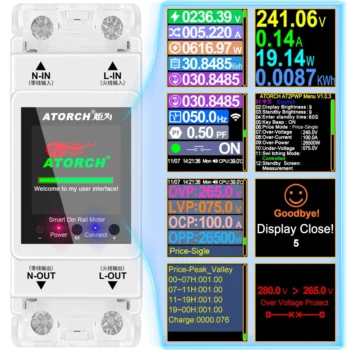

1. 262K Digital Color Display:
   • The meter is equipped with a full-view IPS color display with a resolution of 240RGB240, providing clear and vivid visual information. The display is designed to show various functional interface content, making it easy to monitor your electricity consumption at a glance.
2. Three Electric Tariff Modes:
   • This energy meter supports multiple tariff modes, including single rate, ladder mode, and peak/valley/step-mode. You can customize these modes to meet different needs, allowing for precise control and billing based on time-of-use.
3. Humanized Tariff Setting:
   • You can freely set peak and valley tariffs, as well as ladder tariffs. This feature allows for the division of electricity consumption into multiple time periods, with different tariffs applied to each period. Up to four levels of ladder tariffs can be set, each with customizable intervals.

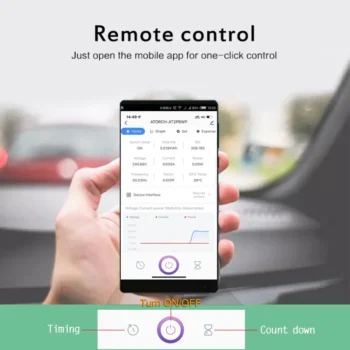

4. Powerful APP Control:
   • The Tuya app offers comprehensive control over the meter, including remote operation of all host functions. The app supports data monitoring, charging and discharging curve statistics, and more. There’s no distance limit, meaning you can control your energy meter from anywhere with a communication signal.
5. Enhanced Power Management:
   • Monitor and manage your electricity consumption in real-time via the mobile app. You can view detailed reports on daily, monthly, and yearly usage, helping you make informed decisions to optimize energy efficiency.
6. Timing Function:
   • The timing function allows you to set multiple schedules for powering on and off the meter. This feature is particularly useful for automating energy use, such as turning off the power at night or when you’re away from home.
7. Quadruple Protections & Multiple Alarms:
   • The meter includes overvoltage, undervoltage, overcurrent, and overpower protections. In case of an anomaly, the meter will automatically power off, with dual alarms (buzzer and interface display) to ensure safe electricity usage.
8. Pre-payment Function:
   • This feature supports a “pay-before-use” system. Once recharged, the meter will automatically cut off the power when the prepaid balance is insufficient, ensuring that you always stay within your energy budget.
9. Power Data Clearing Function:
   • You can reset the cumulative energy data directly from the mobile app, allowing for easy management and tracking of energy usage over time.
10. Multi-device & Sharing Function:
    • One mobile phone can control multiple devices simultaneously, and multiple users can control a single device. This feature is ideal for shared living spaces or commercial environments where multiple users need access.
11. Wi-Fi Network Remote Upgrade:
    • The meter supports remote firmware updates via the Wi-Fi network. Our engineers continuously improve the product based on user feedback, and these updates are provided free of charge.
12. Rail Slot Installation:
    • The meter is designed for easy installation on a 35mm standard rail. No screws are required; the rail is fastened with a clip, simplifying the installation process.
13. Wide Applications:
    • This smart energy meter is suitable for various settings, including homes, rental properties, shopping malls, schools, factories, and more.

Specifications:

• Name: Tuya Wi-Fi Electricity Meter
• Material: Plastic
• Power: 0-26500W
• Voltage: AC 85-265V
• Current: 0-100A
• Measurement Accuracy: ±1%
• Panel Size: 45 * 35mm / 1.77 * 1.38in
• Item Size: 91 * 36 * 70mm / 3.58 * 1.42 * 2.76in
• Package Size: 100 * 80 * 40mm / 3.94 * 3.15 * 1.57in
• Package Weight: 200g / 7.05 ounces
