MCB Miniature Circuit Breaker Type C Curve 3A-63A 1P 2P 3P 4P DIN Rail

13 reviews
100% of buyers enjoyed this product! 4000 orders

Price range: £8.49 through £18.79

1234
10A16A20A25A32A3A40A50A63A6A
Clear

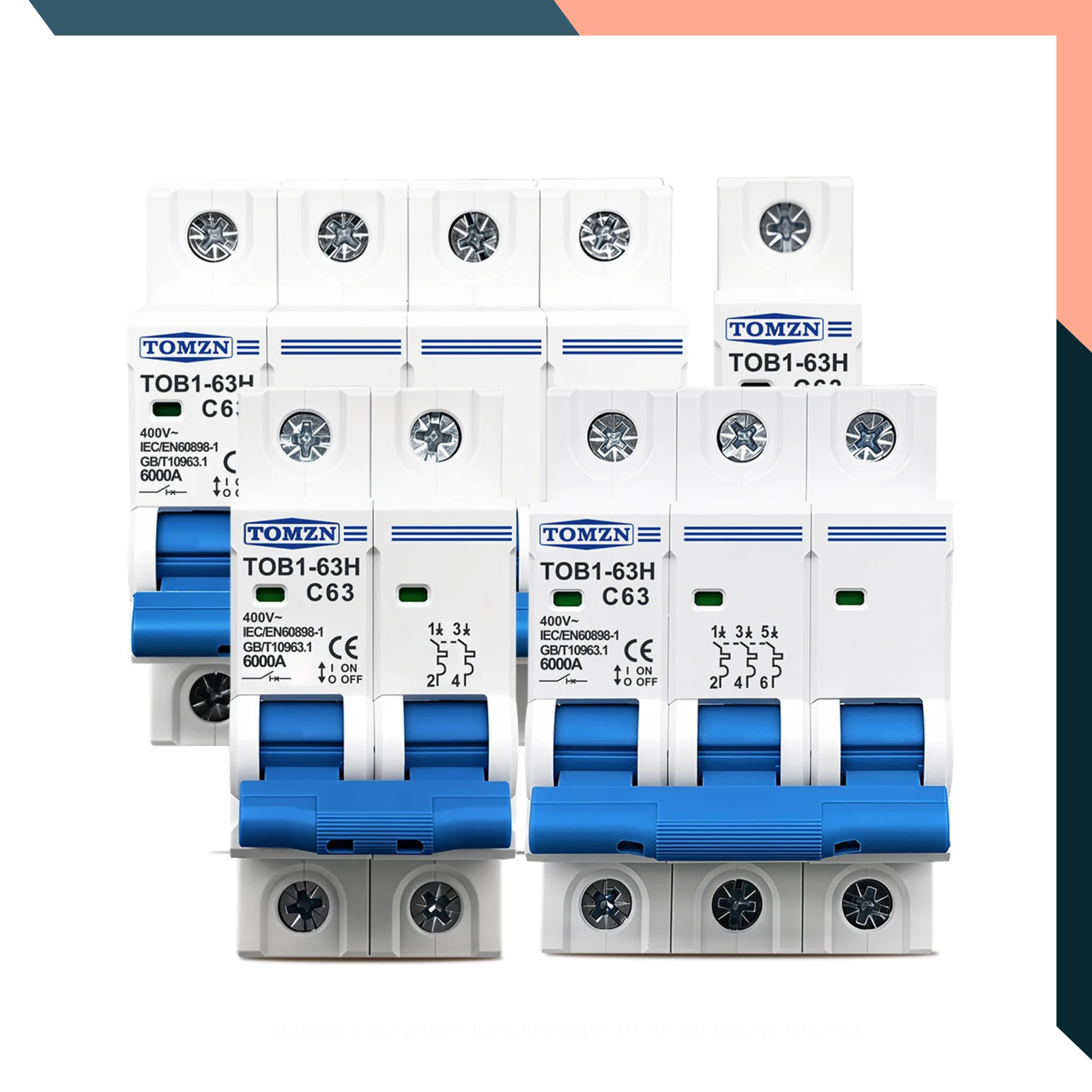

AC MCB C Curve Mini Circuit Breaker 1P–4P for DIN Rail Systems

AC MCB C Curve mini circuit breaker designed for overload and short circuit protection in residential and commercial electrical systems. Suitable for lighting circuits, socket circuits and small motor applications where reliable and fast protection is required.

This circuit breaker operates on AC 230V single phase or up to 400V multi-phase systems at 50Hz/60Hz. Available in 1P, 2P, 3P and 4P configurations with rated currents from 3A to 63A. The C curve tripping characteristic is suitable for general purpose loads with moderate inrush current such as lighting, power tools and small motors. The housing is made from flame-retardant and impact-resistant plastic and is designed for standard DIN rail mounting.

Ideal for use in distribution boards, consumer units and control panels. Provides safe circuit isolation and protection in both domestic and light industrial installations.

Key Details:

  • Type: Miniature Circuit Breaker (MCB)
  • Tripping curve: C Curve
  • Rated voltage: 230V / 400V AC
  • Frequency: 50Hz / 60Hz
  • Poles: 1P / 2P / 3P / 4P
  • Current ratings: 3A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
  • Mounting: Standard DIN rail

Packing List:

  • 1 × Mini Circuit Breaker (selected variant)

Notes:

  • This listing is for C Curve type only
  • Rated current and number of poles depend on selected option
  • Professional installation recommended
  • Images may show multiple variants for reference

AC MCB C curve circuit breaker
mini circuit breaker DIN rail
MCB 1P 2P 3P 4P 63A
electrical distribution breaker
overload short circuit protection
consumer unit circuit breaker

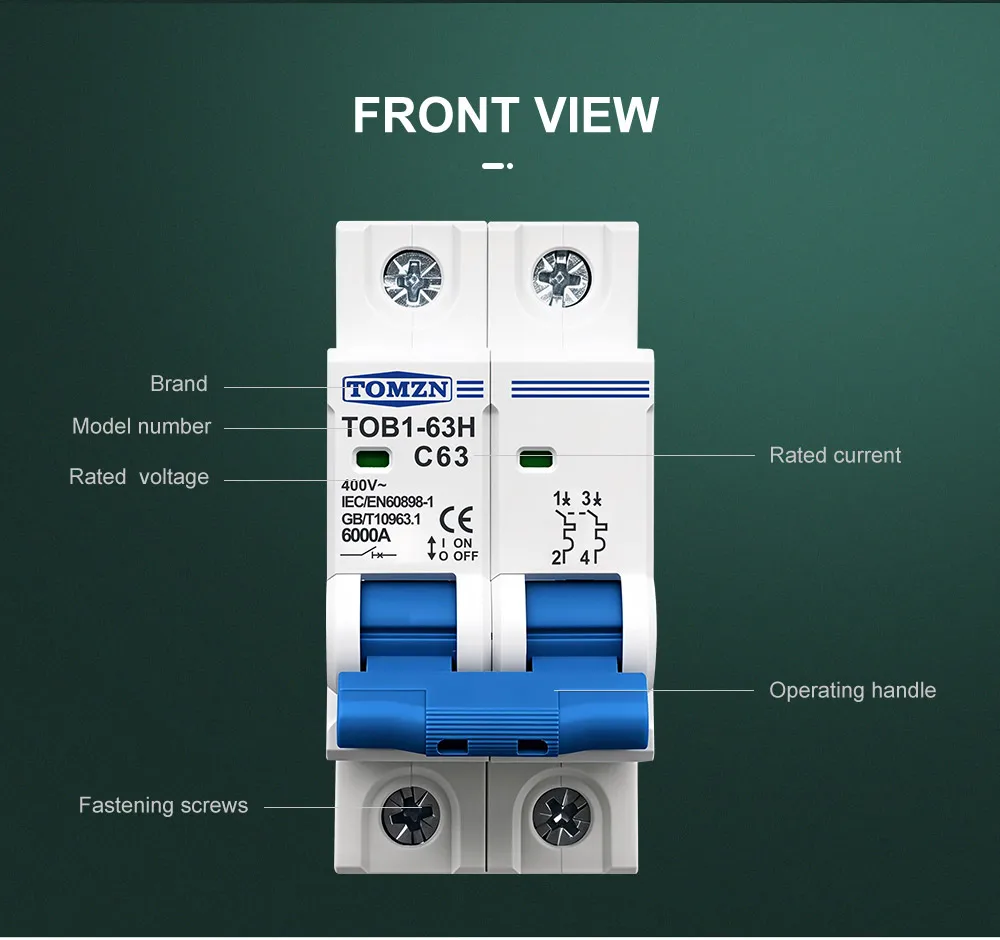

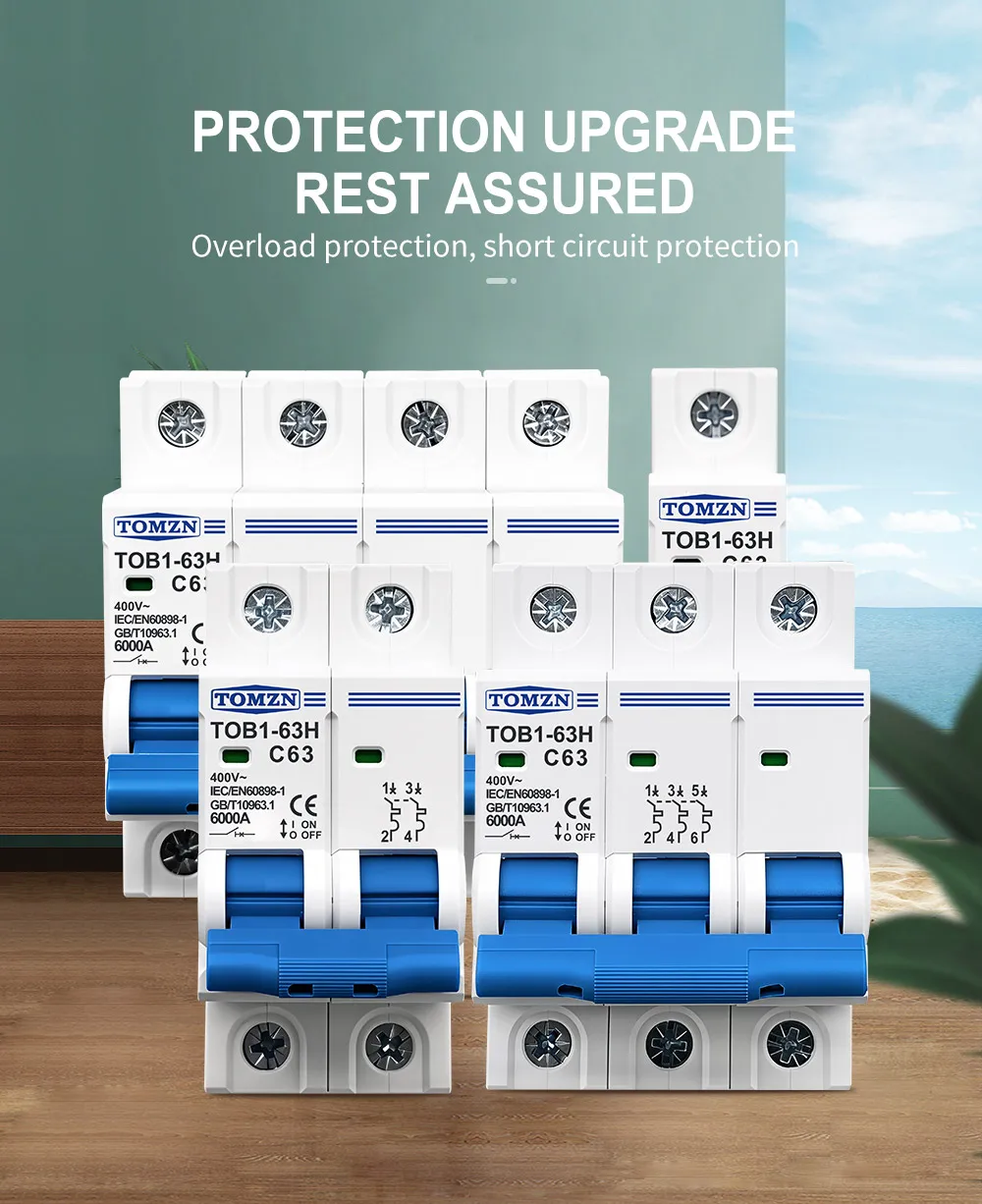

AC MCB C curve mini circuit breaker front view

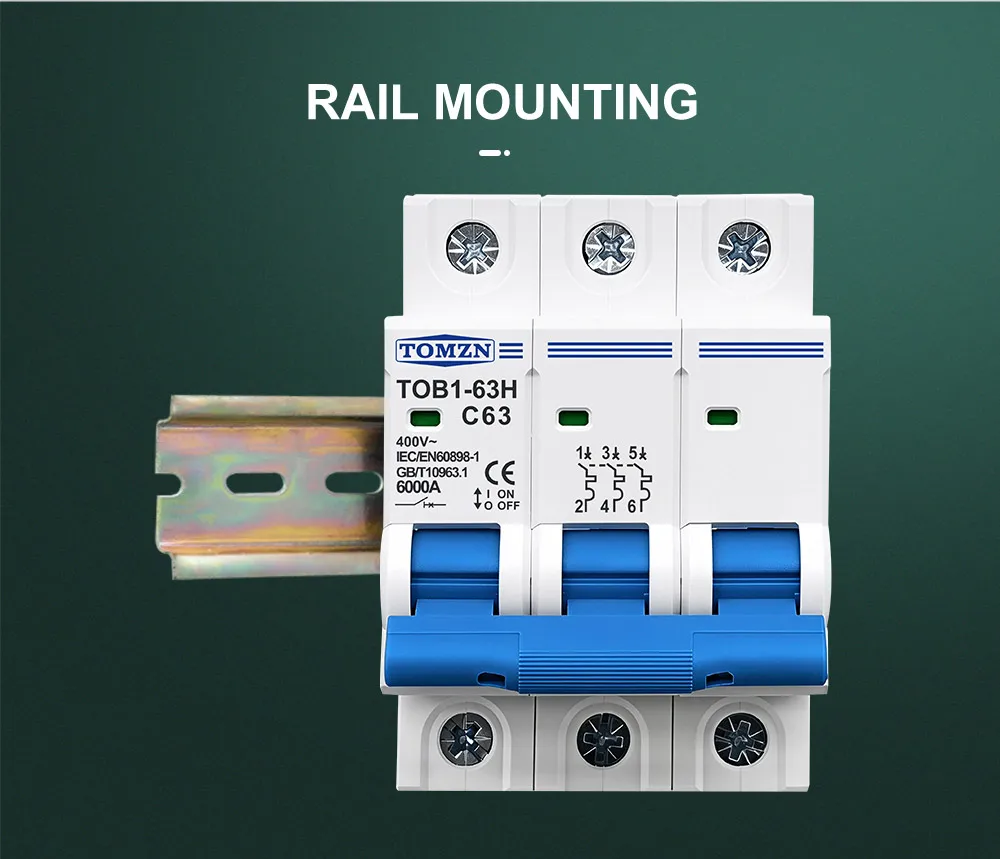

DIN rail mounting AC circuit breaker
MCB side view showing terminals
C curve marking on mini circuit breaker
AC MCB installed in distribution board
Mini circuit breaker rear mounting clip
Single pole MCB size reference
Two pole AC circuit breaker layout
Three pole DIN rail circuit breaker

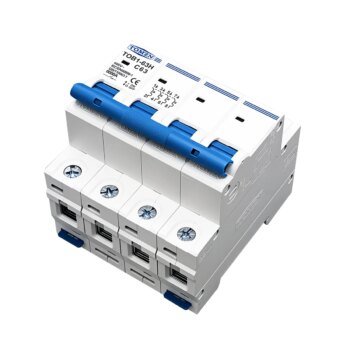

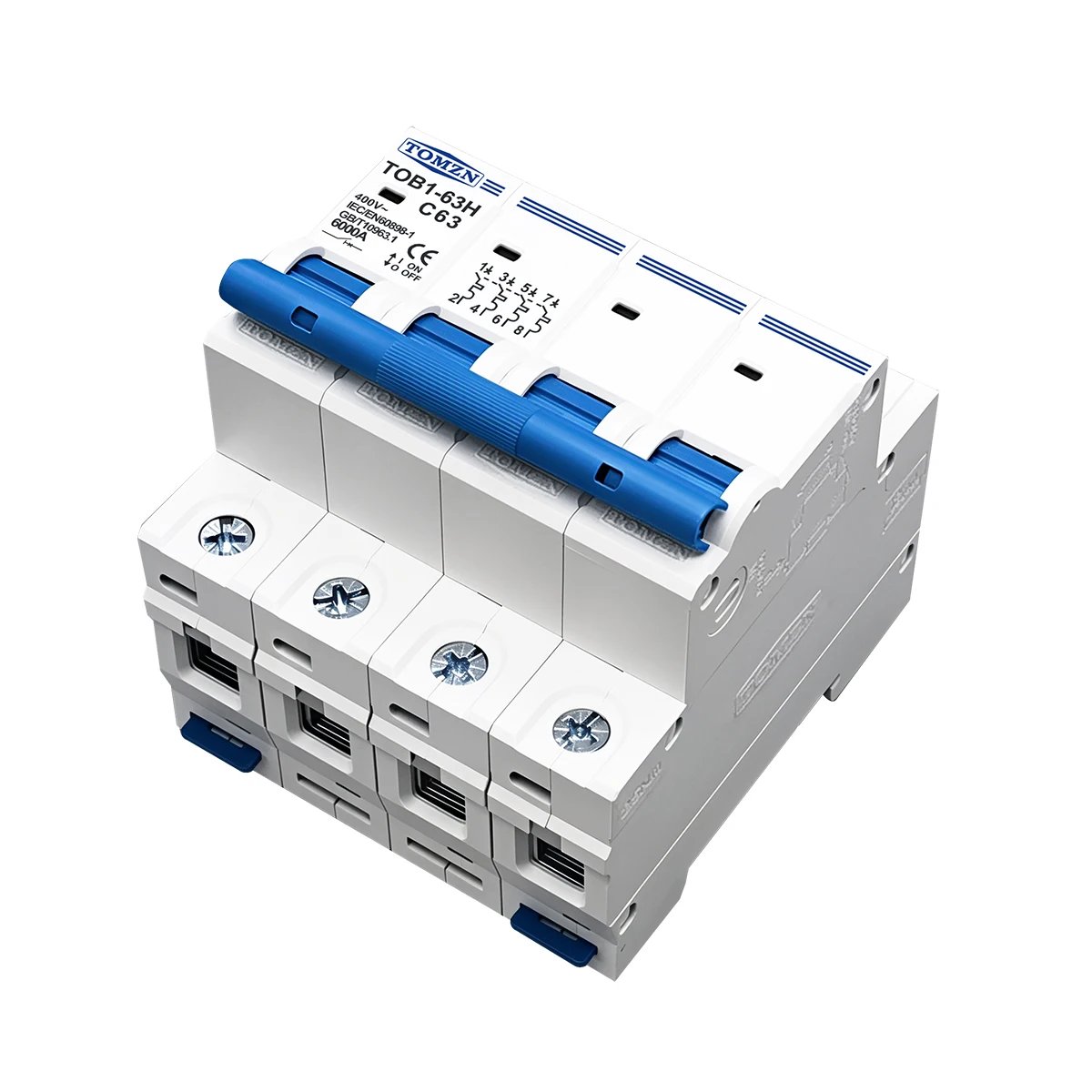

Four pole mini circuit breaker
MCB current rating label close-up
Electrical protection breaker housing
MCB terminal screw detail

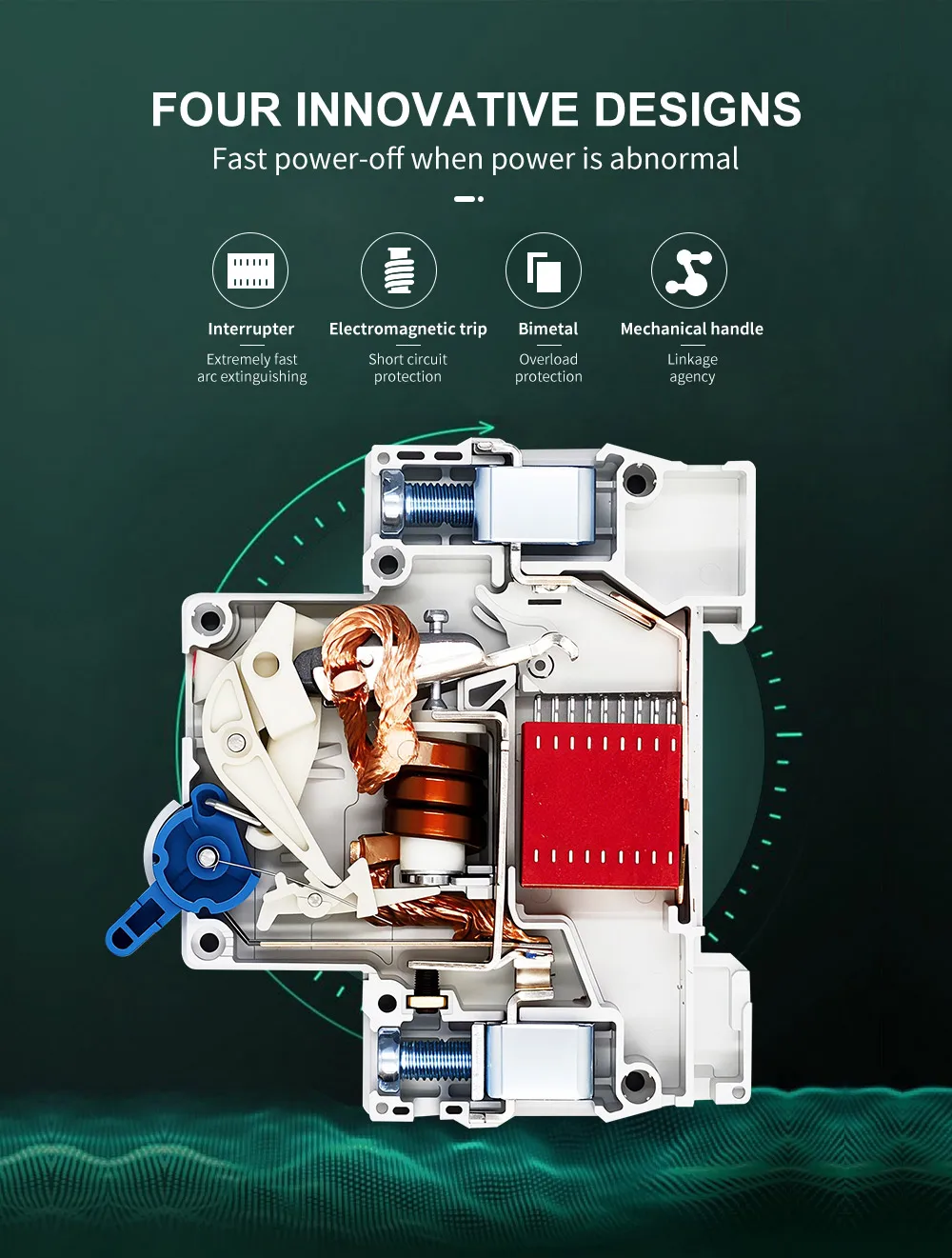

Mini breaker internal mechanism
Circuit breaker packaging
MCB installed example
DIN rail electrical panel setup
Electrical distribution components

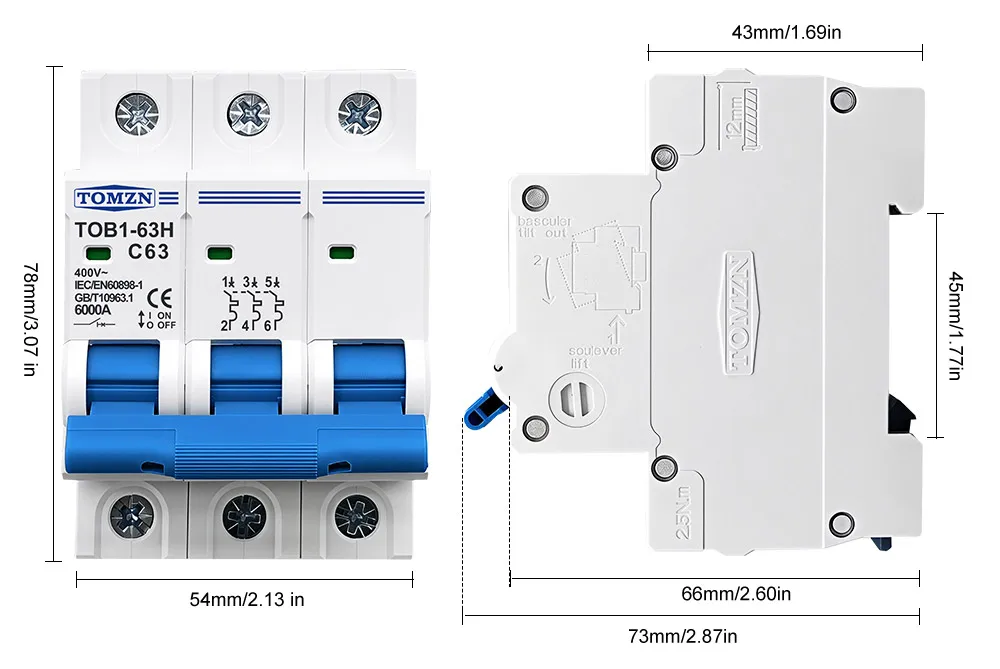

MCB size comparison chart

Weight 8 kg
Dimensions 8 cm
Brand Name

TOMZN

High-concerned chemical

None

Origin

Mainland China

is_customized

Yes

Type

Circuit breaker

Model Number

TOB1-63H

Is Smart Device

No

Certification

CE

Standard

IEC60947, IEC60898

Rated Voltage

230/400V~

Rated current

3A,6A,10A,16A,20A,25A,32A,40A,63A

Mounting

35mm DIN Rail

Breaking Capacity

6kA

Charcteristic Curve

C Type
