WiFi Smart Circuit Breaker 1P+N 63A Timer Energy Meter Tuya MCB

11 reviews
100% of buyers enjoyed this product! 1000 orders

Price range: £20.09 through £24.09

1-63A (Adjustable)10A16A20A25A32A40A50A63A
TOB9-63M MeteringTOB9-63T No meteringTOB9-VAP VA protect
Clear
SKU:
1005005566304770

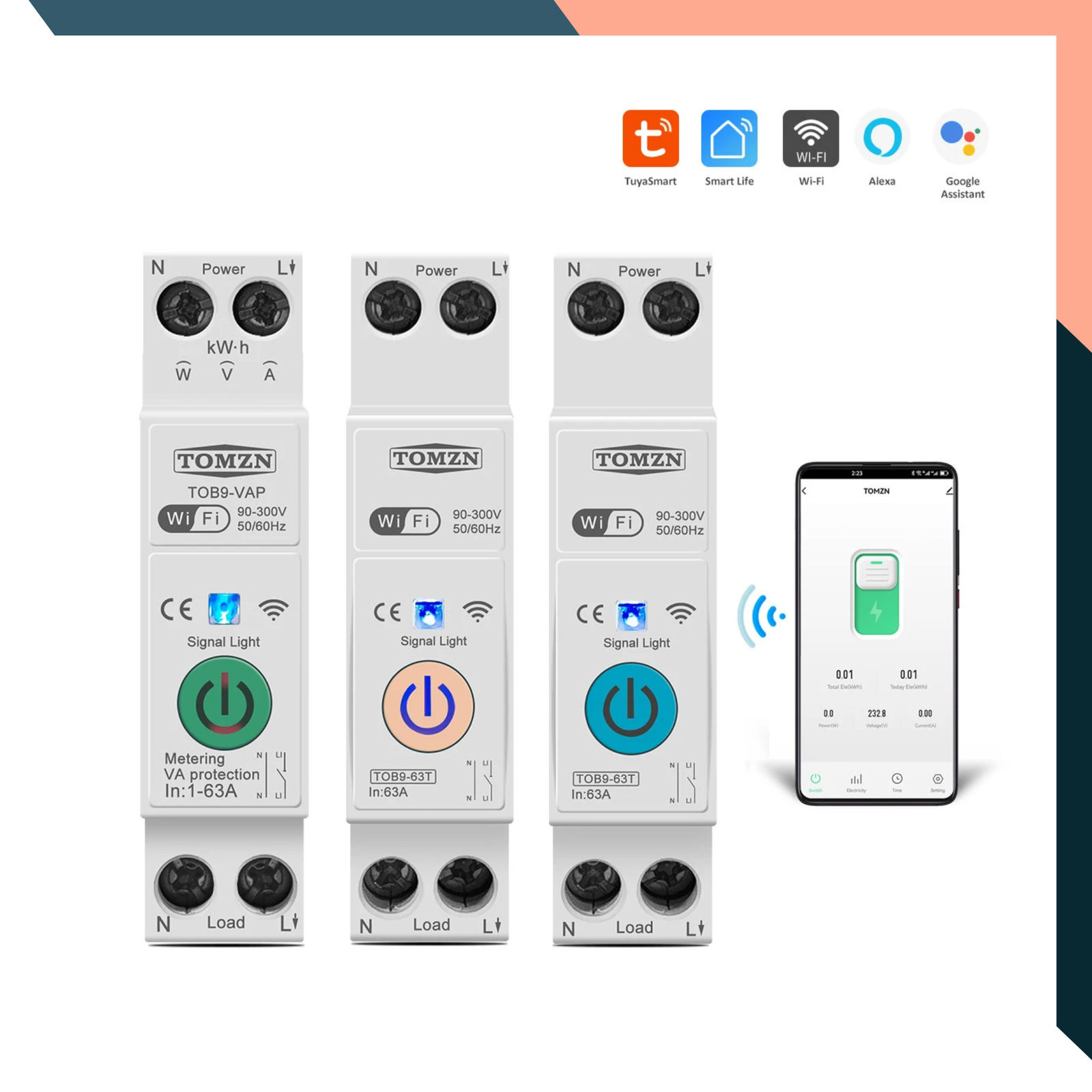

TOMZN WiFi Smart Circuit Breaker 1P+N 63A – Remote Control, Energy Meter, Timer & Protection

Upgrade your electrical setup with the TOMZN TOB9 series WiFi Smart Circuit Breaker, designed for smart energy management, remote control, and overload protection. It works seamlessly with the Tuya and Smart Life apps and offers options for both basic switching and advanced metering.

Key Features

  • Remote ON/OFF: Control your circuit from anywhere using a smartphone (2.4GHz WiFi only).
  • Timer Functions: Schedule or loop timer functions to automate usage and reduce waste.
  • Relay Status Memory: Retains the last switch state after power outage.
  • Energy Monitoring (Metering Models): View voltage, current, power usage and kWh in real-time.
  • Advanced Protection (VAP Model): Over/under-voltage, over-current and over-power protection included.
  • Tuya & Smart Life App: Easy control and monitoring with Android or iOS apps.

Variants

  • TOB9-63T: Basic model – Remote ON/OFF + Timer + Relay memory
  • TOB9-63M: Adds Energy Monitoring: Voltage, Current, Power, Active Power, kWh
  • TOB9-VAP: Includes Metering + Adjustable protections (voltage, current, power)

Technical Specifications

  • Rated Current: 63A
  • Voltage Range: AC 90–300V, 50/60Hz
  • Mechanical Life: 100,000+ cycles
  • Operating Temp: -25°C to 70°C
  • Installation: 35mm DIN rail
  • Network: WiFi 2.4GHz (not compatible with 5GHz)

Important Notes

  • Wiring: Power must enter from the top (L + N). L + L wiring is not supported.
  • Compatibility: Does not support Home Assistant. Use Tuya or Smart Life only.

Application Areas

Perfect for smart homes, energy metering in rental units, EV chargers, HVAC control, and protection of sensitive equipment.

TOMZN TOB9-63M smart breaker with remote app control
Energy monitoring features on TOB9-63M smart WiFi breaker
Current and voltage display in Smart Life app
TOMZN TOB9 breaker with timer and metering modes
Voltage and kWh metering with Tuya WiFi breaker
Wiring diagram for smart breaker 1P+N connection
Tuya Smart Life compatible WiFi MCB relay
TOB9 breaker installation and setup
Energy data displayed in app interface
Breaker settings and voltage thresholds in app

Weight 5 kg
Dimensions 8 cm
Brand Name

TOMZN

Hign-concerned Chemical

None

Origin

Mainland China

Type

Circuit breaker

Model Number

TOB9-VAP

Is Smart Device

YES

Certification

CE

TOB9-63M

Metering

TOB9-63T

No metering

TOB9-VAP

Metering Voltage and current protection
