Tuya WiFi 3-Phase 4P 100A Auto-Reclosing Voltage Protector Meter Smart Switch

131 orders

Price range: £63.39 through £88.79

3
100A10A16A32A63A
Clear
SKU:
1005006400175538

Tuya WiFi 4P 100A 3-Phase Auto-Reclosing Over/Under Voltage Protector Meter

Protect and automate your three-phase installation with this all-in-one smart auto-reclosing protector and energy meter. Designed for AC 230/400V systems (50/60Hz), it offers remote control via the Smart Life / Tuya app, voice support (Alexa / Google Assistant / Alice), adjustable protection thresholds, prepaid mode (optional), and automatic reclosing once faults clear.

Key Benefits

  • Smart control, anywhere: App remote switching, status, schedules and sharing with family or team.
  • Voice assistants: Works with Amazon Alexa, Google Assistant and Yandex Alice for hands-free control.
  • Comprehensive protection: Over/under voltage, overcurrent, residual-current (leakage), over-temperature, surge and phase imbalance (4P).
  • Auto-reclosing: Automatically restores power after conditions return to normal to minimise downtime.
  • Real-time metering: View current, voltage, power and energy (A, V, mA, kW, kWh, °C) directly in the app.
  • Local operation: Front keys/handle allow manual use even without Wi-Fi.
  • DIN-rail mount: Fast installation on standard 35 mm DIN rail.

Important Notes

  • App metering: The app displays active power only (reactive power is not shown).
  • Safety lockout: If leakage trips occur three times, auto-reclosing is disabled until the fault is fixed.
  • Help & setup: This product has many functions — contact support if you need assistance.

Protection Ranges (Adjustable)

  • Overcurrent: 1–63A / 100A (default 63A)
  • Over-voltage: 250–400V (default 275V)
  • Under-voltage: 150–190V (default 170V)
  • Residual current (leakage): 10–100 mA (default 50 mA)
  • Alarm temperature: 50–90 °C (default 60 °C)
  • Trip temperature: 60–100 °C (default 70 °C)
  • Reclose delay: 5–90 s (default 30 s; set locally on device)

Specifications

  • Poles: 4P three-phase (also available: 2P single-phase)
  • Rated voltage: 3Ɨ230/400V AC (4P); 230V AC (2P)
  • Rated current: up to 63A / 100A adjustable
  • Frequency: 50/60 Hz
  • Load capacity: resistive ≤13 kW; inductive ≤6 kW
  • Self-consumption: < 2 W
  • Wireless: 2.4 GHz Wi-Fi (Smart Life / Tuya)
  • Mounting: 35 mm DIN-rail

What You Can Do

  • Switch on/off remotely and create timers and schedules.
  • Enable prepaid metering mode (optional) for credit-based operation.
  • Share device access with colleagues or family and view live electrical parameters.

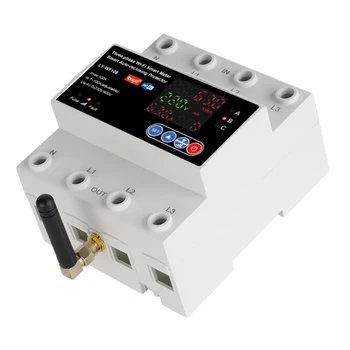

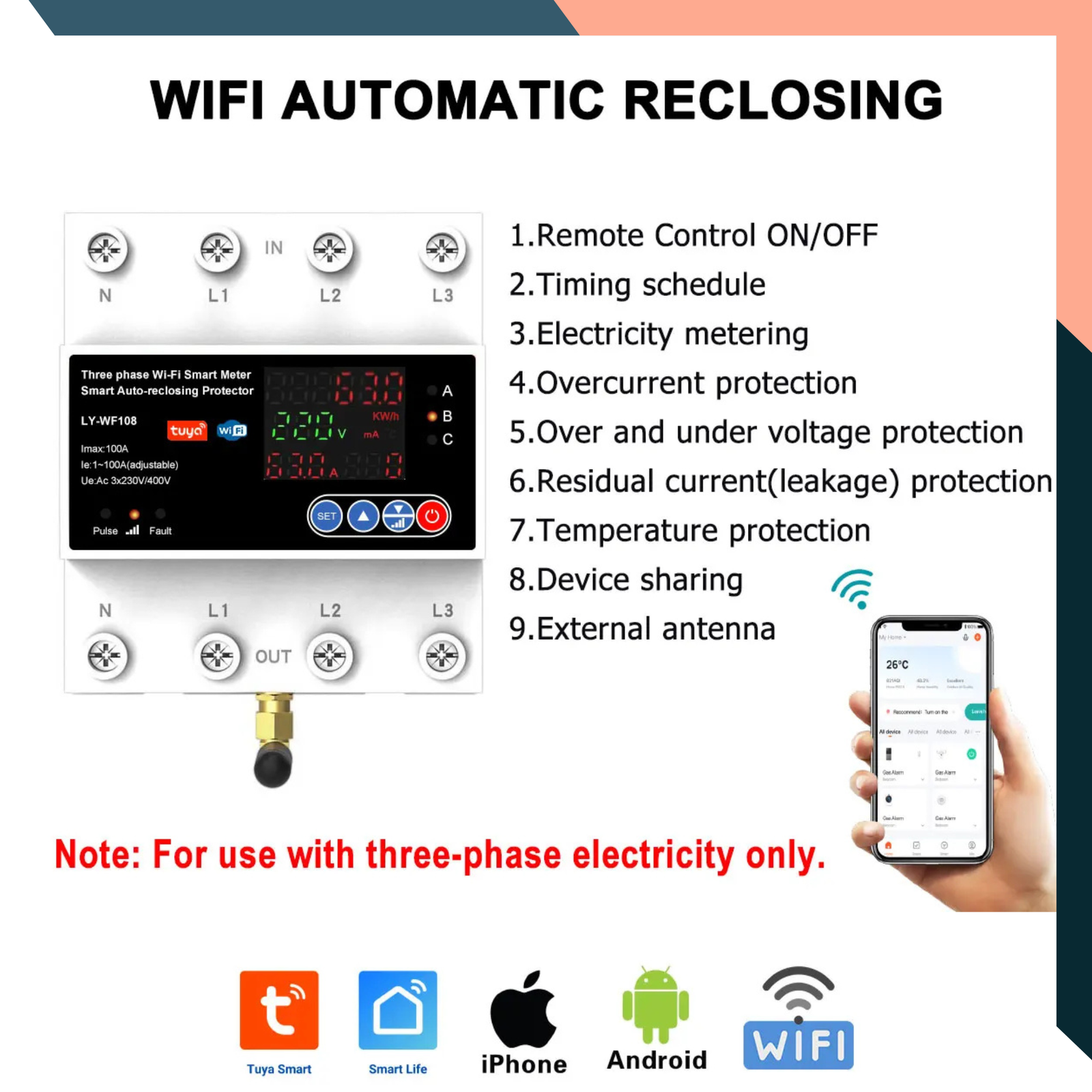

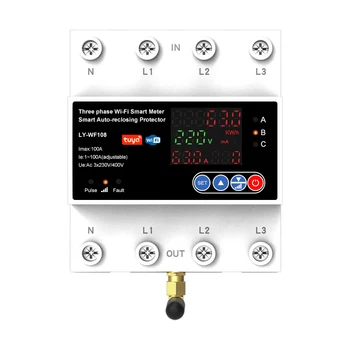

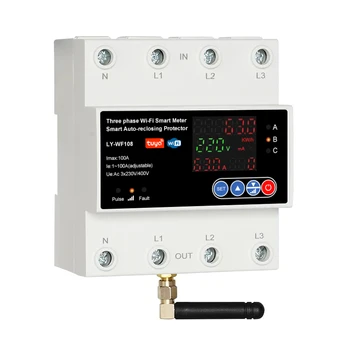

4P 100A three-phase smart auto-reclosing protector front view
Smart Life Tuya app control for three-phase protector
Adjustable protection thresholds over under voltage and current
Auto reclosing circuit breaker mechanism with handle
Residual current leakage protection settings
Temperature alarm and trip protection parameters
Real time metering display of current voltage and power
Three phase four wire connection diagram and terminals
DIN rail mounting view for quick installation
Smart meter prepaid mode and settings in app

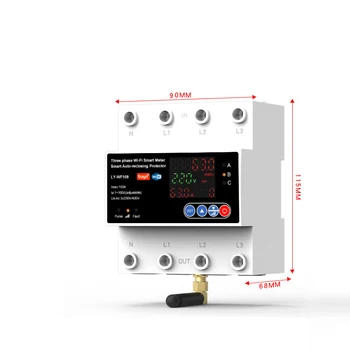

Protector dimensions and enclosure details
Over under voltage protection examples
App schedule and timer configuration for automation
Device sharing and remote monitoring features

Weight 11 kg
Dimensions 9 cm
Brand Name

CHLIUYI

Model Number

WIFI 63(108MM)

High-concerned chemical

None

Is Smart Device

Yes

Origin

Mainland China

Certification

CE

Type

Circuit breaker
