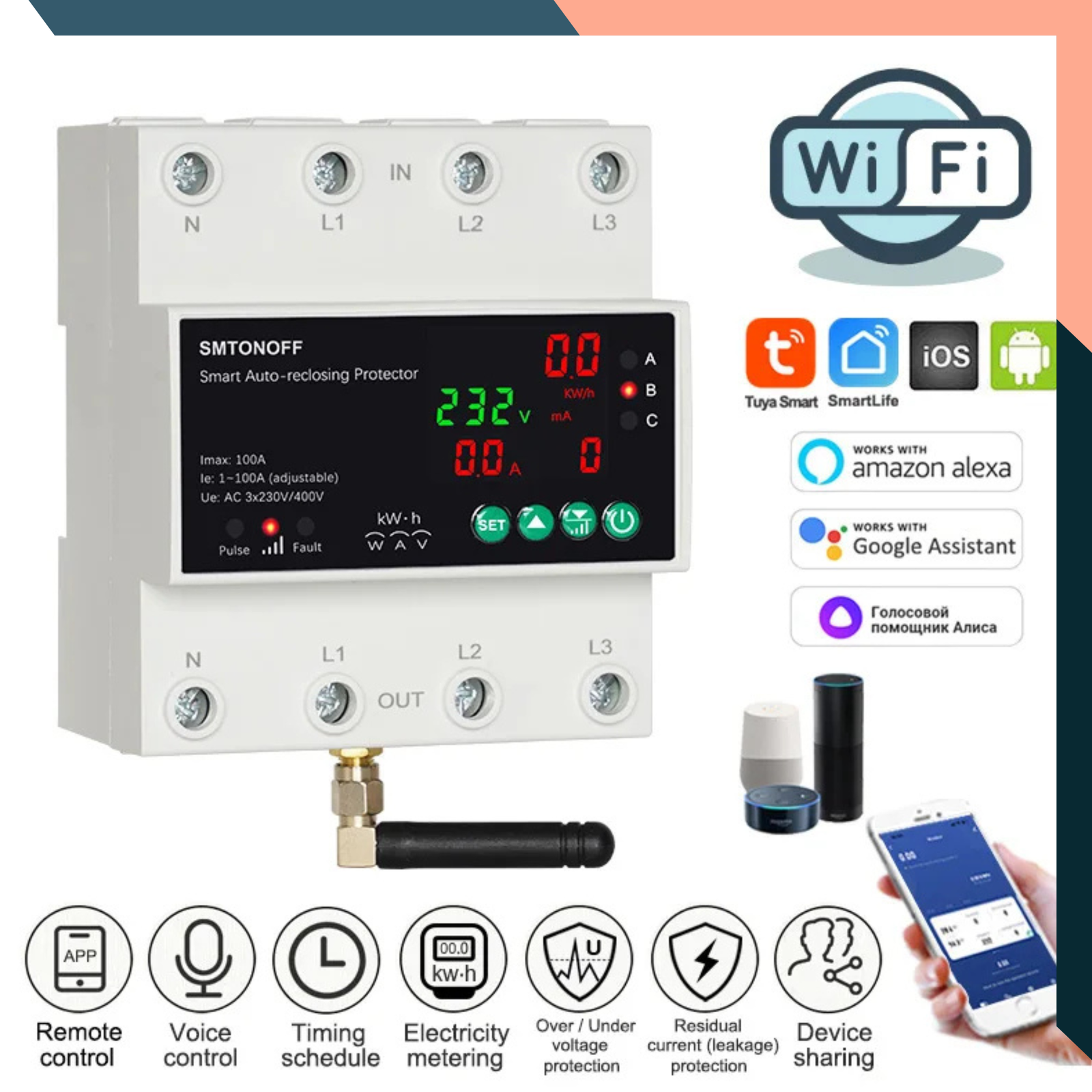

Tuya WiFi 3 Phase 100A Smart Auto Reclosing Voltage Protector Alexa Meter

12 reviews
100% of buyers enjoyed this product! 700 orders

£66.09

SKU:
1005005712031079

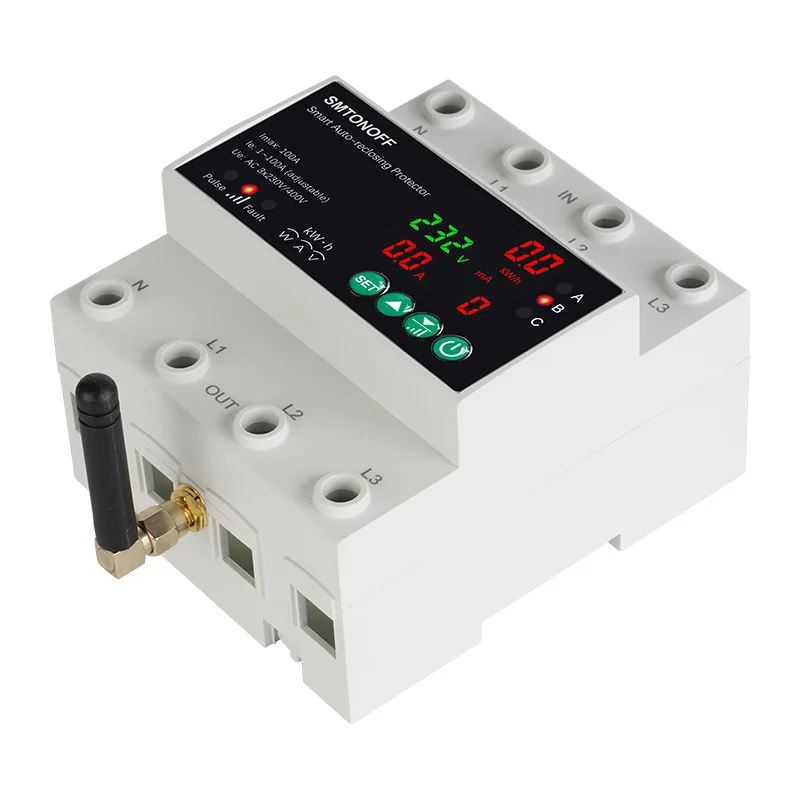

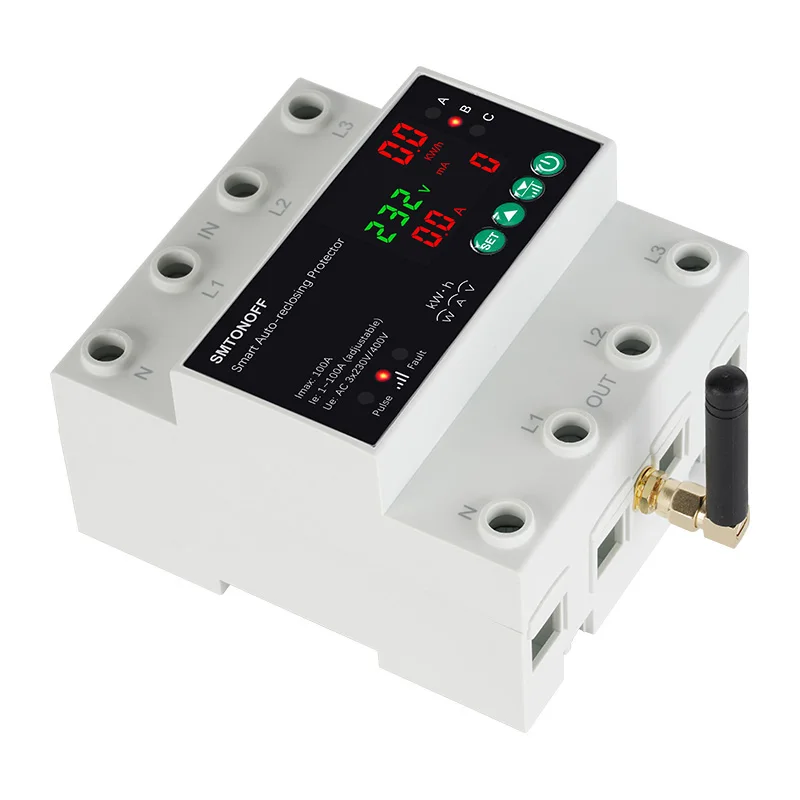

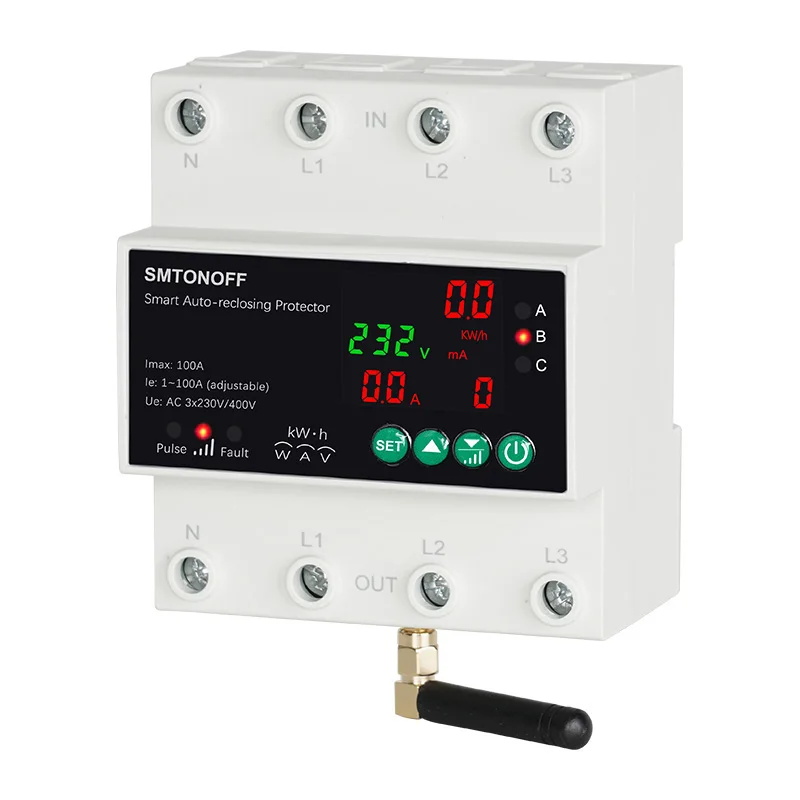

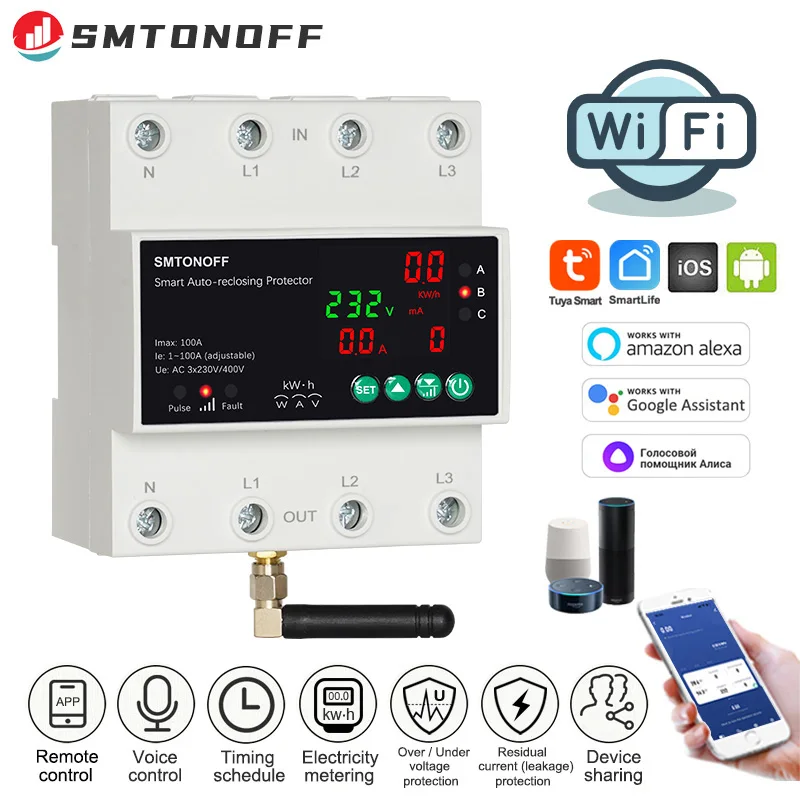

Tuya WiFi 3 Phase 100A Smart Auto Reclosing Voltage Protector Alexa Meter

Upgrade your electrical system with the Tuya Smart WiFi 3-Phase Auto-Reclosing Voltage Protector – a powerful intelligent device designed to safeguard and manage three-phase circuits in homes, workshops, and commercial buildings. With built-in WiFi, energy monitoring, and voice control via Alexa or Google Assistant, it combines safety, convenience, and smart automation in one unit.

Key Features

  • Three-Phase Compatibility: Supports 230V/400V AC systems up to 100A, ideal for industrial or residential setups. Not suitable for single-phase use.
  • Auto Reclosing Function: Automatically restores power after detecting and resolving over/under voltage, overcurrent, or leakage faults — perfect for non-attended systems.
  • Smart Protection: Adjustable thresholds for voltage, current, leakage, and temperature ensure equipment safety and prevent damage.
  • Energy Monitoring: Real-time tracking of voltage, current, power, and energy consumption via the Tuya Smart or Smart Life App.
  • Voice & Remote Control: Control and monitor remotely from your smartphone or by voice commands using Alexa or Google Assistant.
  • Prepaid Meter Function: Built-in prepaid mode lets you manage power consumption and credit through the app (default password 1234).
  • Timer & Scheduling: Set automatic on/off schedules to manage power efficiently and save energy.
  • Manual Operation: Includes on-device keys and handles for local control, even without WiFi.
  • Overload & Surge Protection: Ensures full safety for sensitive and high-load devices, with automatic trip recovery.

Technical Specifications

  • Rated Voltage: 3Ɨ230V/400V AC
  • Rated Current: Adjustable 1–100A (default 63A)
  • Frequency: 50/60Hz
  • Protection Settings: Adjustable over/under voltage, overcurrent, leakage, and temperature
  • Mounting: 35mm DIN rail
  • WiFi Frequency: 2.4GHz (not 5GHz)
  • App: Tuya Smart / Smart Life
  • Voice Assistants: Alexa, Google Assistant, Yandex Alice
  • Self-Consumption: Below 2W
  • Protection Delay: 5–90 seconds adjustable
  • Material: Flame-retardant ABS housing
  • Installation: Three-phase four-wire system (N + L1 + L2 + L3)

Important Notes

  • This unit is for three-phase systems only — do not use on single-phase circuits.
  • If testing on single-phase, connect N+L1+L2+L3 for testing only (not for permanent use).
  • All phases must be connected for phase-loss protection to function correctly.
  • To enable prepaid mode, recharge the device in the app’s ā€œExpenseā€ section.

Why Choose This Tuya Smart Protector?

  • Combines protection, automation, and monitoring in one compact device.
  • Automatic fault recovery for continuous, reliable operation.
  • Smart app control with precise energy management.
  • Compatible with voice assistants for hands-free use.
  • Perfect for workshops, factories, or advanced smart home systems.

Package Includes: 1Ɨ Tuya Smart 3-Phase Voltage Protector, 1Ɨ User Manual.

Stay safe, connected, and in control with this advanced Tuya WiFi 3-Phase Smart Protector — the future of intelligent power management.

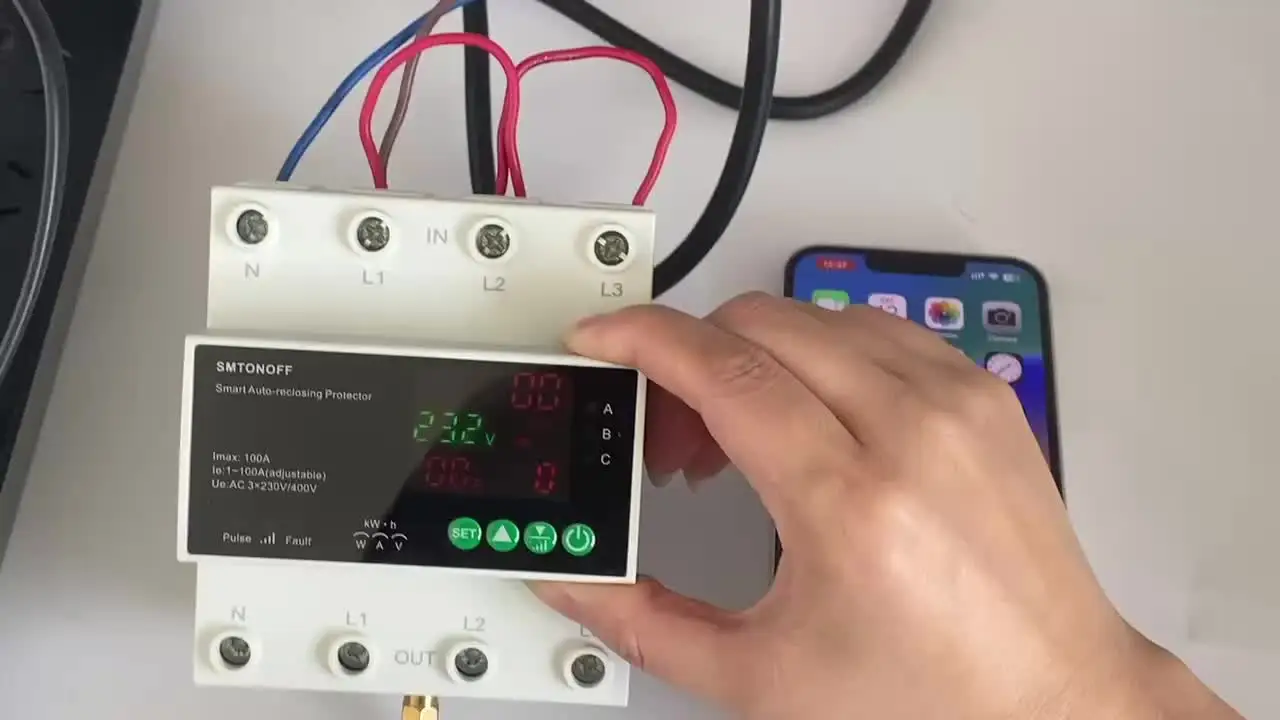

Tuya Smart WiFi 3 Phase Voltage Protector front view
Tuya 3 Phase Voltage Protector wiring diagram
Tuya Smart 3 Phase WiFi protector installation diagram
Tuya 3 Phase Auto Reclosing device details
WiFi smart protector display and controls
Tuya energy monitoring screen with app
Three phase voltage protection system
Auto reclosing smart voltage protector module
Tuya app control and prepaid metering
Tuya smart protector Alexa and Google voice support
Tuya WiFi protector mounted on DIN rail
Three phase power monitoring protection device
Tuya app settings for voltage and current protection
Smart protector thermal safety and control
Tuya voltage protection demonstration

Weight 10 kg
Dimensions 8 cm
Brand Name

smartmcb

Origin

Mainland China

High-concerned chemical

None

Certification

CE
