2P DC 1000V Solar MCB Mini Circuit Breaker 3A–63A PV Overload Protector

3000 orders

£15.49£15.99

10A16A20A25A32A3A40A50A63A6A
Clear
SKU:
4000529722874

2P DC 1000V Mini Circuit Breaker for Solar PV Systems

Reliable Protection for Your Solar Installation

Ensure the safety and stability of your photovoltaic system with this 2-pole DC mini circuit breaker. Designed for 1000V DC applications, this MCB offers reliable short-circuit and overload protection, making it ideal for residential and commercial solar energy installations. With a wide current range from 3A to 63A, it can be tailored to fit the specific needs of your solar setup.

Main Features

  • Rated Voltage: DC 1000V
  • Current Ratings Available: 3A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
  • Poles: 2P
  • Breaking Capacity: High-performance arc-extinguishing system
  • Application: Photovoltaic (PV) solar systems
  • Protection: Overload and short-circuit protection
  • Mounting: DIN rail compatible

Applications

  • Solar photovoltaic power systems
  • Off-grid and hybrid systems
  • Battery charge controllers and inverters
  • Solar combiner boxes

Benefits

  • Efficient protection ensures long-term reliability of solar equipment
  • Compact DIN rail design for easy installation in tight enclosures
  • Designed specifically for the demands of high-voltage DC circuits

Important Notes

  • For use in DC applications only
  • Installation should be performed by qualified personnel

Product Images

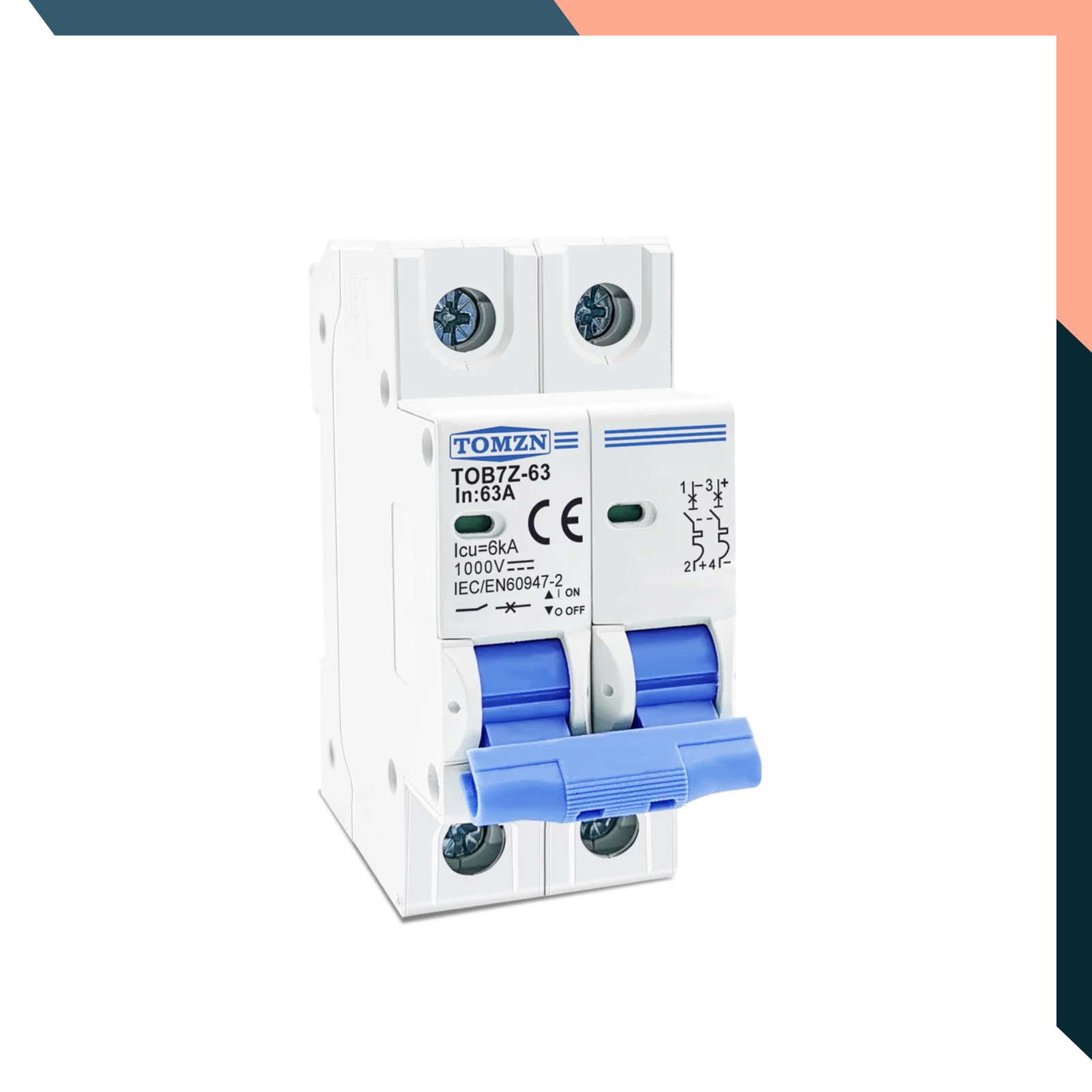

Front view of DC 1000V solar mini circuit breaker

Side profile of 2P DC solar MCB on DIN rail

Label details and rating specification of the MCB

Back panel with mounting clips for DIN rail

Product size diagram for easy planning

Wiring diagram for solar installation

High voltage DC circuit breaker arc chamber

Multiple circuit breakers in solar distribution box

Testing panel for solar MCBs

Packaging and label for shipment

MCB installed in field application

Close-up view of internal mechanism

Weight 10 kg
Dimensions 4 cm
Brand Name

TOMZN

Hign-concerned Chemical

None

Type

Mini

Origin

Mainland China

is_customized

Yes

Model Number

TOB7Z-63

Certification

CE
