Electric Thermal Actuator for Underfloor Heating: Specifications and Features

The electric thermal actuator is an essential component for modern underfloor heating systems. Designed to control the flow of heating water through thermostatic radiator valves (TRVs), this actuator ensures precise temperature regulation and efficient heating. Below, we provide a comprehensive overview of its specifications, features, and installation guidelines to help you make the most out of this component.

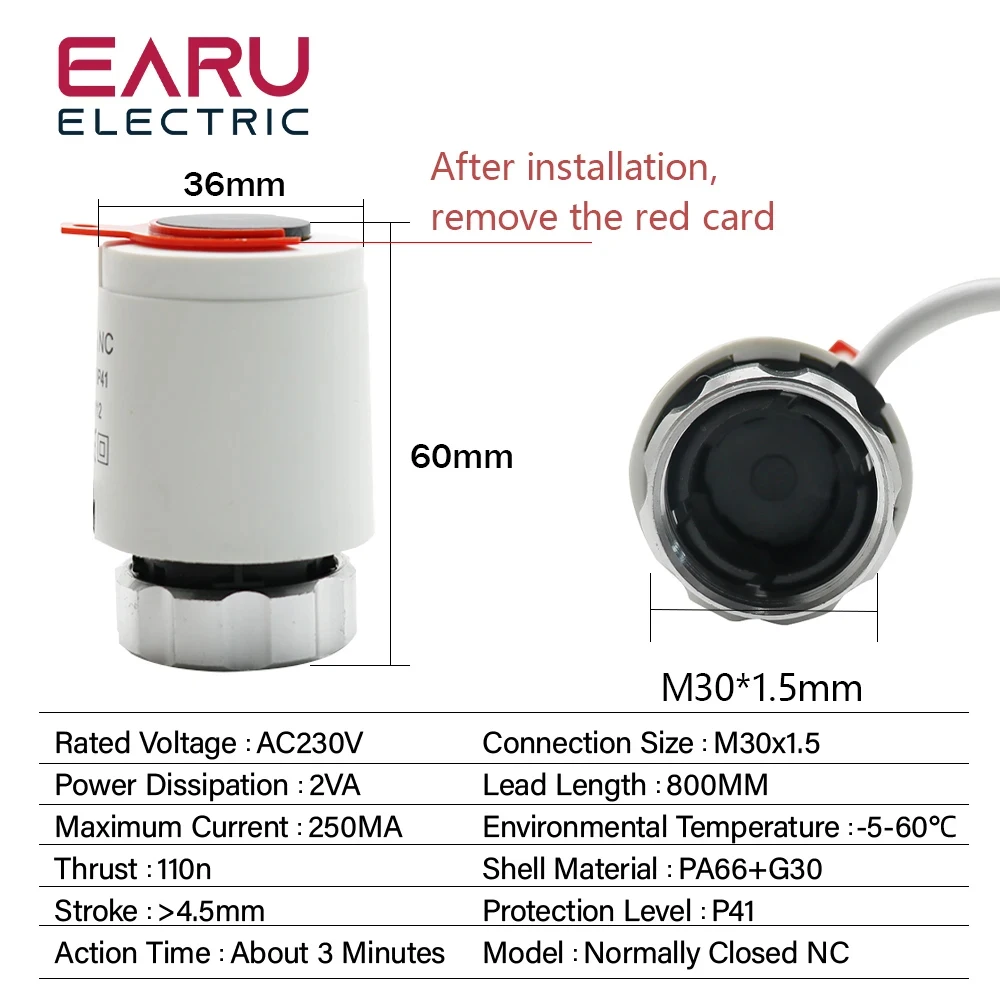

Key Specifications

Material Composition

• Housing: ABS + PC Alloy
• Internal Components: Anti-flammable PA66

Dimensions

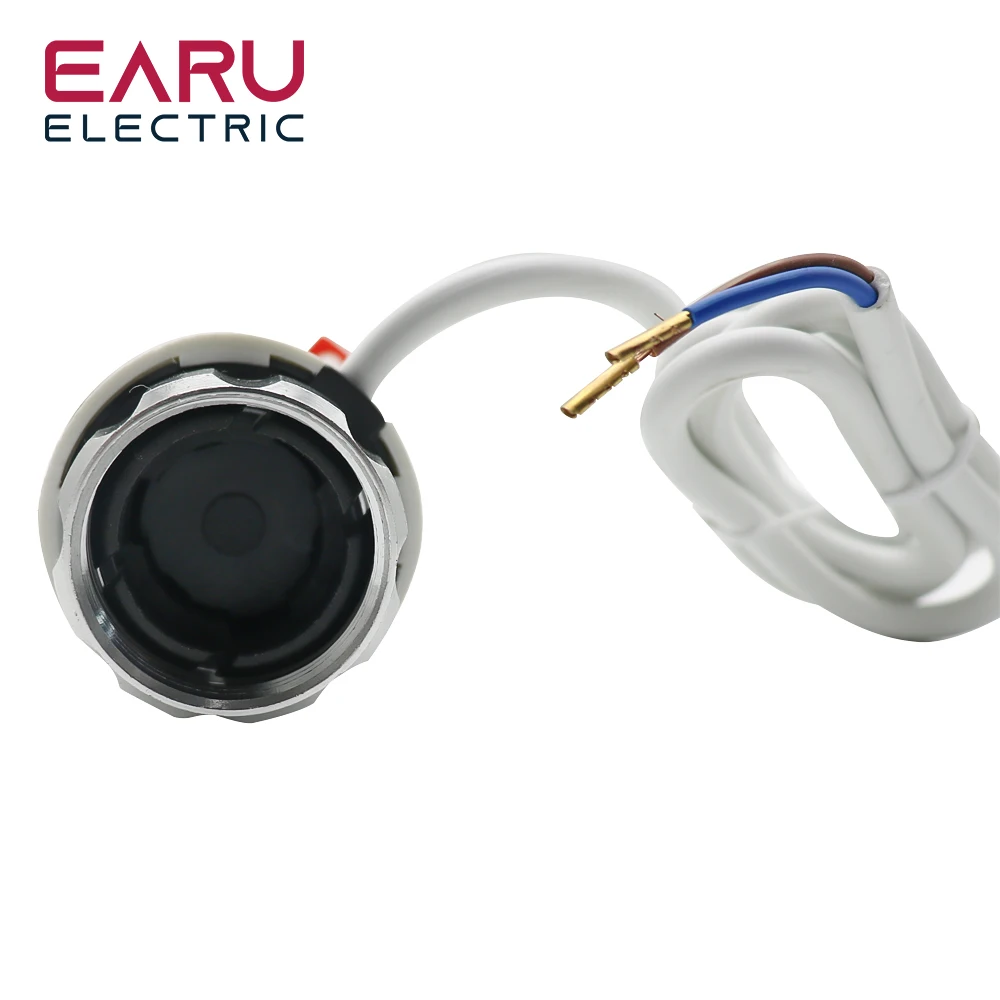

• Cap Nut Diameter: Approximately 3 cm (1.18 inches)
• Length of Cable: 88 mm

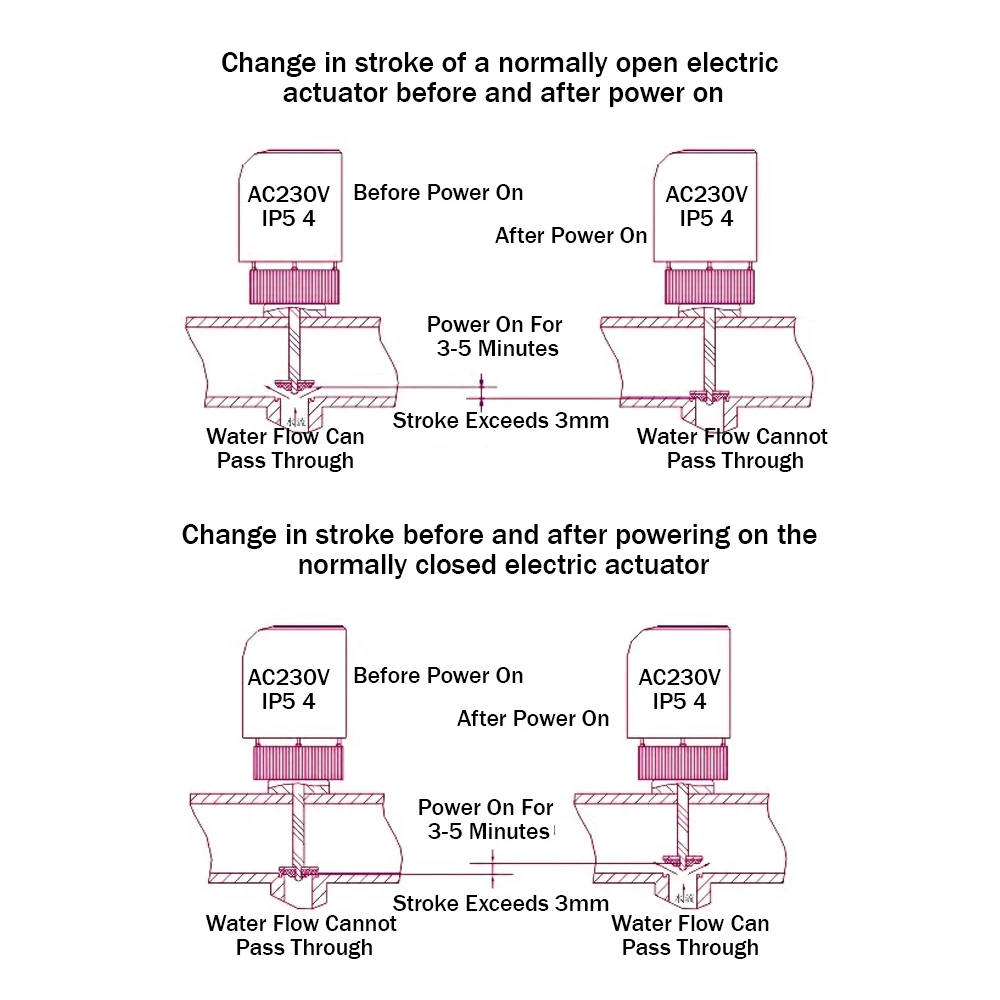

• Stroke Length: Approximately 3.5 mm

Performance and Power

• Voltage: AC 230V
• Power Consumption: 2W
• Running Time: 3-5 minutes

Protection and Environment

• Protective Housing Rating: IP41
• Ambient Temperature Range: -5℃ to 60℃

Mounting Position

• The actuator should be installed in a vertical position with a maximum decline of 85°.

Features and Benefits

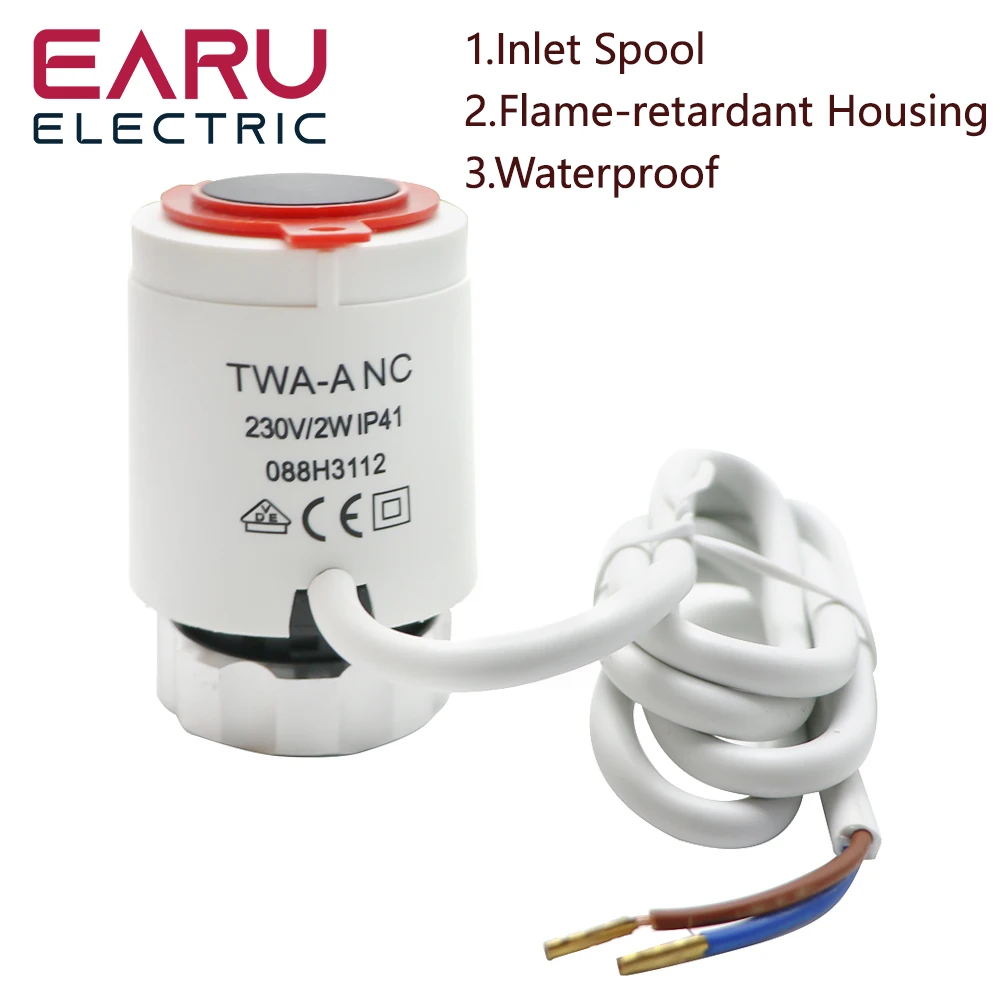

1. Durable and Safe Construction The actuator is made from a robust ABS + PC alloy housing, providing excellent durability and resistance to physical stress. The internal components are constructed from anti-flammable PA66, enhancing safety and reliability in various operating conditions.
2. Efficient Temperature Control Designed for use with underfloor heating thermostats, this actuator ensures precise control of heating elements. Its 3-5 minute running time allows for efficient temperature regulation, promoting consistent comfort levels in your space.
3. Compact and User-Friendly With a compact design, including a cap nut diameter of approximately 3 cm and a cable length of 88 mm, the actuator is easy to install and integrate into existing heating systems. Its stroke length of approximately 3.5 mm provides adequate movement for effective operation.
4. Energy Efficient The actuator operates with a low power consumption of just 2 watts, contributing to energy savings and minimizing operational costs while maintaining effective temperature control.
5. Versatile Operating Conditions The actuator is built to function reliably within an ambient temperature range of -5℃ to 60℃, making it suitable for various environments. Its IP41 protective housing rating ensures it is protected from dust and water splashes, enhancing its longevity and performance.
6. Safe Installation For optimal performance, the actuator should be installed in a vertical position with a maximum decline of 85°. This installation guideline helps ensure the actuator operates correctly and efficiently.

Package Includes

• 1 x Electric Thermal Actuator

The package includes one electric thermal actuator, ready to be installed and used in your underfloor heating system. The actuator’s design and features are tailored to provide reliable and efficient temperature control, making it an essential component for maintaining a comfortable and well-regulated environment.

Important Notes

• Measurement Variations: Please allow minor deviations in measurements due to manual measurement processes. Such variations are normal and do not affect the actuator’s performance.
• Color Accuracy: Due to differences in monitor displays, the color of the actual item may vary slightly from what is shown in the pictures. This does not impact the functionality or quality of the actuator.

The electric thermal actuator is a vital element in underfloor heating systems, offering precise temperature control and efficient performance. With its durable construction, energy-efficient operation, and versatile environmental compatibility, it provides a reliable solution for maintaining optimal heating conditions. Whether you’re upgrading an existing system or installing a new one, this actuator will enhance your heating setup and ensure consistent comfort.
