Video Surveillance Recorder – Smart DVR/NVR – 4/8/16 Channels, 5MP-N, 1080P

4 reviews
100% of buyers enjoyed this product! 63 orders

Price range: £64.19 through £117.19

16CH4CH8CH
None
Clear
SKU:
1005005498868900

Xmeye Smart DVR/NVR – 4/8/16 Channels, 5MP-N, 1080P Video Surveillance

Product Overview

The Xmeye Smart DVR/NVR is a high-performance video surveillance recorder designed to support 4, 8, or 16 channels. With 5MP-N resolution and 1080P video quality, it ensures clear and detailed security monitoring. This DVR/NVR is equipped with audio over coaxial and advanced motion detection features, making it a reliable choice for comprehensive surveillance needs.

Key Features

  • Channels: Available in 4, 8, or 16 channels for versatile surveillance setups.
  • Resolution: 5MP-N and 1080P for high-definition video clarity.
  • Audio Over Coaxial: Transfers audio via coaxial cables without additional equipment.
  • Motion Detection: Features advanced motion detection with adjustable sensitivity settings.
  • Compatibility: Supports ONVIF protocol for seamless integration with third-party devices and mobile applications.
  • H.265+ Coding Technology: Efficient video compression for reduced bandwidth consumption.
  • Remote Access: Access your DVR/NVR remotely through smartphones or CMS software.
  • Multi-Mode Input: Compatible with various signal types including XVI, AHD, TVI, CVI, CVBS, and IP.

Specifications

4 Channel Model

  • Main Processor: Industrial-grade embedded chip NT98321
  • Display Resolution: Up to 1920x1080P
  • Preview Capability: 4 channels up to 5MP at 12fps
  • Encoding Capability: 4 channels up to 5MP at 12fps
  • Decoding Capability: 4 channels up to 5MP at 12fps
  • Video Inputs: 4 BNC
  • Video Outputs: 1 HDMI, 1 CVBS, 1 VGA
  • Network Interface: RJ45 10M/100M adaptive Ethernet port
  • USB Interface: 2 USB interfaces
  • Hard Disk Interface: 1 SATA (supports up to 14TB)
  • Power: 12V/2A

8 Channel Model

  • Main Processor: Industrial-grade embedded chip NT98321
  • Display Resolution: Up to 1920x1080P
  • Preview Capability: 8 channels up to 5MP at 12fps
  • Encoding Capability: 8 channels up to 5MP at 12fps
  • Decoding Capability: 2 channels up to 5MP at 12fps
  • Video Inputs: 8 BNC
  • Video Outputs: 1 HDMI, 1 CVBS, 1 VGA
  • Network Interface: RJ45 10M/100M adaptive Ethernet port
  • USB Interface: 2 USB interfaces
  • Hard Disk Interface: 1 SATA (supports up to 14TB)
  • Power: 12V/2A

16 Channel Model

  • Main Processor: Industrial-grade embedded chip NT98312
  • Display Resolution: Up to 4K
  • Preview Capability: 16 channels up to 5MP at 12fps
  • Encoding Capability: 16 channels up to 5MP at 6fps
  • Decoding Capability: 8 channels up to 5MP at 6fps
  • Video Inputs: 16 BNC
  • Video Outputs: 1 HDMI (4K), 1 VGA
  • Network Interface: RJ45 10M/100M adaptive Ethernet port
  • USB Interface: 2 USB interfaces
  • Hard Disk Interface: 1 SATA (supports up to 14TB)
  • Power: 12V/2A

Package Includes

  • 1 x DVR/NVR Unit
  • 1 x Mouse
  • 1 x 12V2A Power Adapter (for 4CH and 8CH models); DC12V2.5A or DC12V3A for 16CH model. For HDDs larger than 3TB, use DC12V3A or 12V5A power adapter.
  • 1 x Screw Bag for Hard Disk

Note: Hard disk is optional and only included if you select the DVR with Hard Disk option. The retail box may differ from the product image.

How to Access via Smartphone and CMS

To access the DVR/NVR using a computer, visit www.xmeye.net and enter the serial number found on the DVR.

For smartphone access, download the Xmeye app, open it, select “Log on Locally,” add the device, and input the serial number to log in.

If you have any questions or need assistance, please contact us.

Product Images

Xmeye DVR/NVR Front View

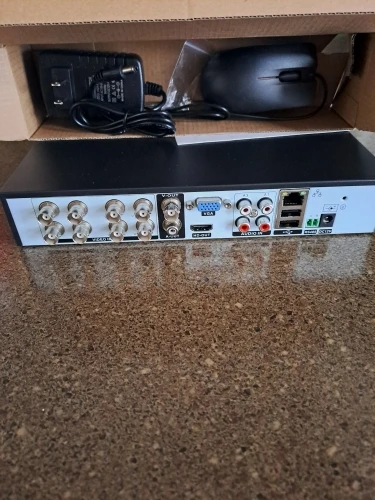

Xmeye DVR/NVR Rear View
Xmeye DVR/NVR Side View
Xmeye DVR/NVR Detailed View
Xmeye DVR/NVR Display Example
4 Channel DVR/NVR Model
8 Channel DVR/NVR Model
16 Channel DVR/NVR Model
Xmeye DVR/NVR Installation
Xmeye DVR/NVR Mobile App
4CH DVR/NVR Main Display
8CH DVR/NVR Main Display
16CH DVR/NVR Main Display
Xmeye DVR/NVR CMS Access



Weight 26 kg
Dimensions 9 cm
Brand Name

WUSONGLUSAN

Origin

Mainland China

Hign-concerned Chemical

None

Network Protocol

DNS

Two-way Audio

YES

Compression Format

H.264

Wireless Security

WPA

Hard drive Interface Type

SATA

POE

None

Certification

none

e-Cloud(P2P)

YES

IP Mode

Dynamic IP address

Hard Drive Size

3.5''

Video Input Interface

BNC (1.0 Vp-p, 75Ī©)

Supported Mobile Systems

Android

Audio Compression Format

G711A

Model Number

3504M/3508M-3516M/FS

Audio Input

16 Channel

Technology

Network

Supported Operating Systems

Mac OS

Video Standard

PAL

Smart home platform

other

Backup Type

SD

Video Resolution

4MP

Alarm Action

FTP Photo

Video Output

1 CVBS + 1 HDMI-Compatible + 1VGA

Network Interface

WIFI

Audio Output

1CH RCA

Communication Interface

RS485
