Smart WiFi Circuit Breaker with TUYA App Integration – Remote Control, Metering & Protection
Take control of your power management with this advanced Smart WiFi Circuit Breaker. Designed for modern households and commercial environments, it offers remote access, real-time metering, voice control, and multiple protection functions through the TUYA Smart App. Perfect for enhancing electrical safety, monitoring energy usage, and enabling smart automation via WiFi, 4G, Zigbee or RS485 protocols.
Key Features
- Real-time Monitoring: View load current, voltage, and power statistics with detailed day, month, and year tracking.
- Multiple Protections: Built-in overvoltage, undervoltage, overcurrent, overload, high power, short circuit, and terminal temperature protection.
- Remote Control: Switch on/off devices remotely via mobile app, including timer and scheduling features.
- Voice Control: Compatible with Amazon Alexa, Google Home, and IFTTT for hands-free operation.
- OTA Firmware Updates: Ensure continuous improvement and new feature access.
Specifications
- Rated Voltage Range: 145V – 295V (Over/undervoltage protection not available for 110V)
- Maximum Frame Current: 63A
- Trip Type: Type C
- Measurement Accuracy: Class 1.0
- Short Circuit Breaking Capacity: Icn = Ics = 10kA
- Mechanical Life: > 10,000 operations
- Electrical Life: > 6,000 operations
- Installation Width: WiFi: 36mm / 4G: 54mm
Important Installation Notice
Power must be connected from the top. Only Live + Neutral (L+N) is supported – do not use L+L.
Functions Overview
- Remote switching and real-time power monitoring
- Protection parameter configuration (voltage, current, power, temperature)
- App and web-based settings and monitoring
- Built-in TUYA chip for stable WiFi signal transmission
- Supports protocols: WiFi / 4G / Zigbee / RS485
Smart Home Integration
This circuit breaker can be included in scenes and automation routines to turn off high-power devices during peak times, or shut off power if unsafe electrical conditions are detected.
Package Includes
- 1 × Smart Circuit Breaker
- 1 × User Manual

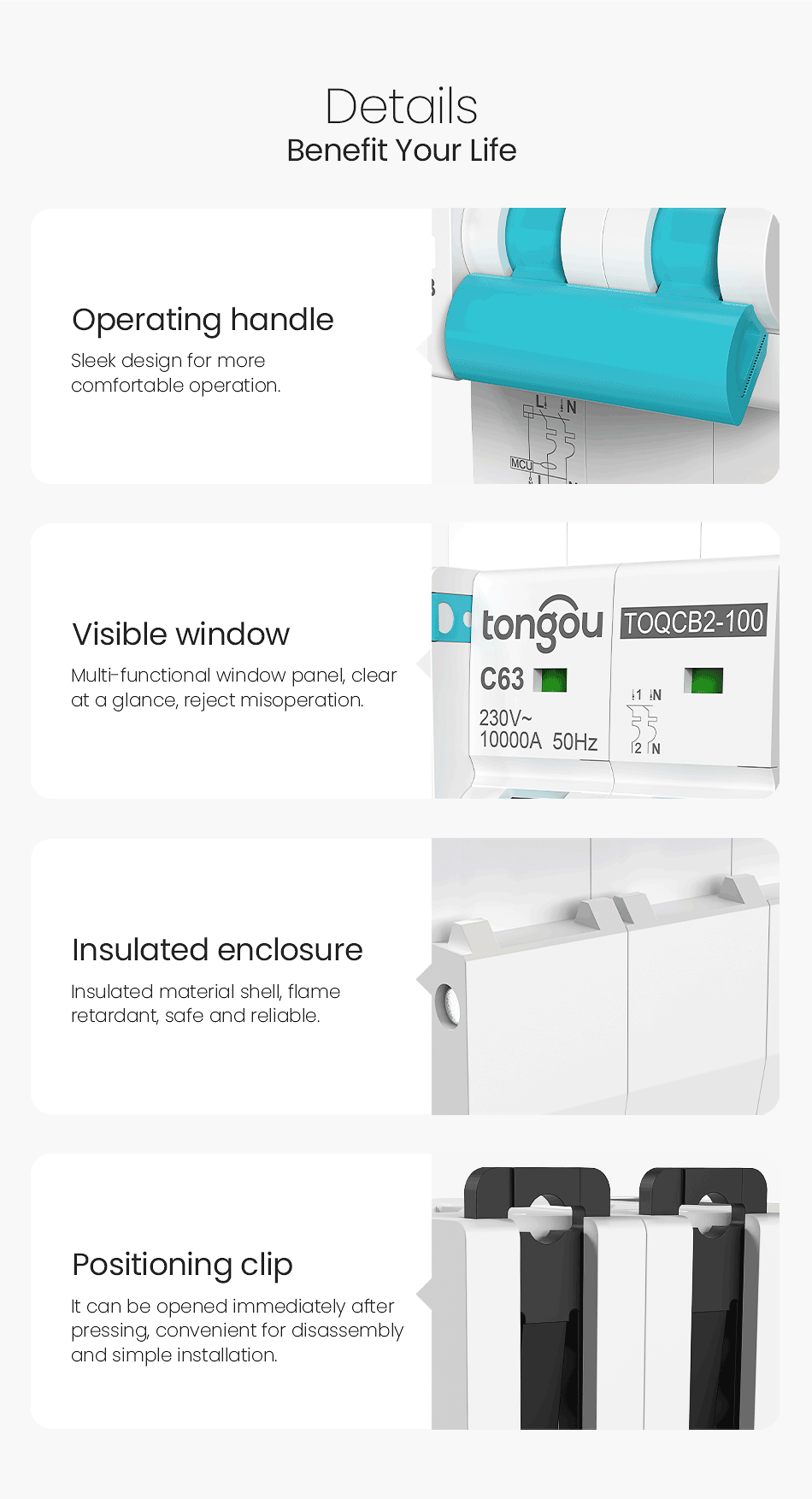

Product Images
