Tuya WiFi Smart Circuit Breaker 1P+N 6-63A kWh Meter Timer Alexa Voltage Current

Name: Tuya WiFi Smart Circuit Breaker 1P+N 6-63A kWh Meter Timer Alexa Voltage Current » PYC online
SKU: 1005006633468272
Availability: InStock

Rated 4.5 out of 5

700 orders

Price range: £16.59 through £19.19

Poles Number	No MeteringWith Metering
Rated Current	10A16A20A25A32A40A50A63A6A Clear

Quantity

SKU:

1005006633468272

Categories:

Smart Circuit Breakers & Energy Meters, Smart Home

Tags:

1P+N smart breaker, 63A WiFi breaker, Alexa circuit breaker, DIN rail WiFi switch, energy monitoring circuit breaker, kWh meter switch, remote control breaker switch, Smart Energy Meter, Smart Life breaker switch, Tuya smart circuit breaker, voltage current monitor, WiFi circuit breaker

Product details

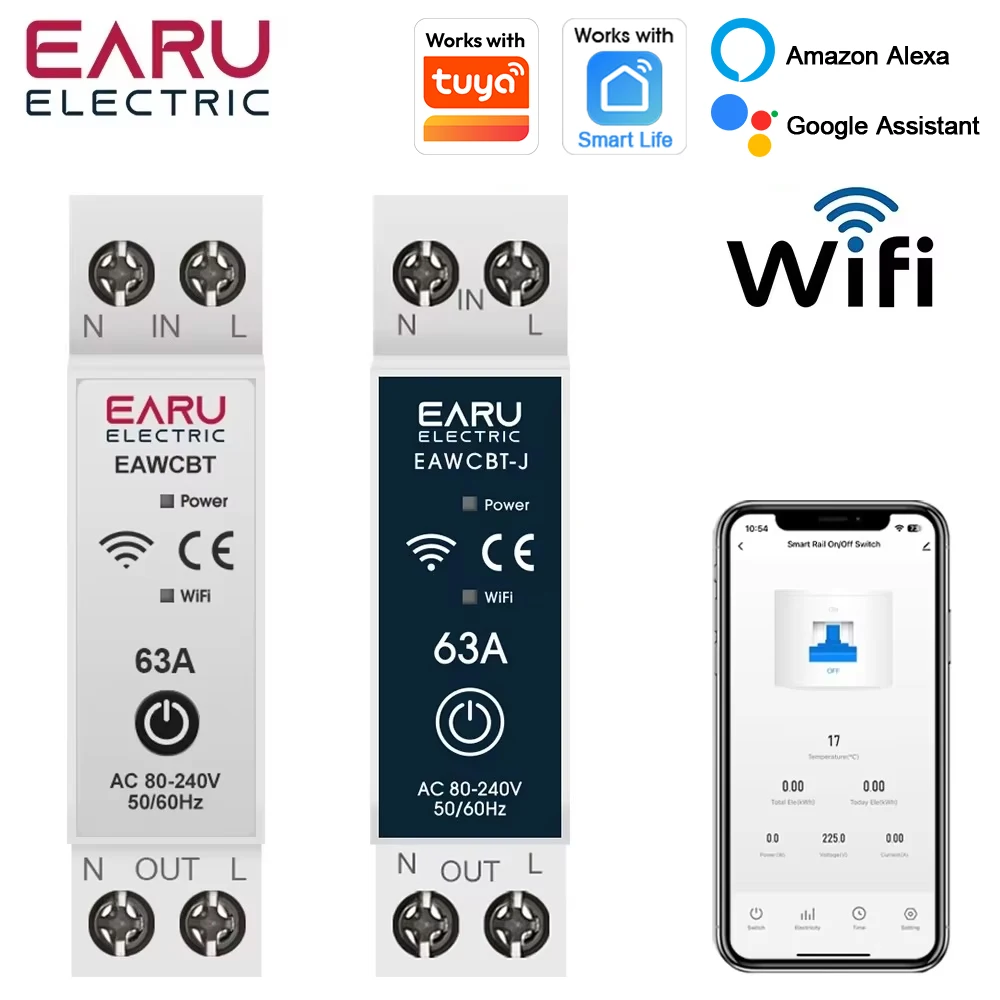

Tuya WiFi Smart Circuit Breaker with Optional Energy Metering

Control and monitor a connected electrical circuit remotely using the Tuya Smart or Smart Life app. This 1P+N smart circuit breaker is available in current ratings from 6A to 63A and fits a standard 35mm DIN rail.

All versions support remote switching, scheduling and power failure memory. Selected models also provide energy monitoring and adjustable power, voltage and temperature protection settings.

Product Video

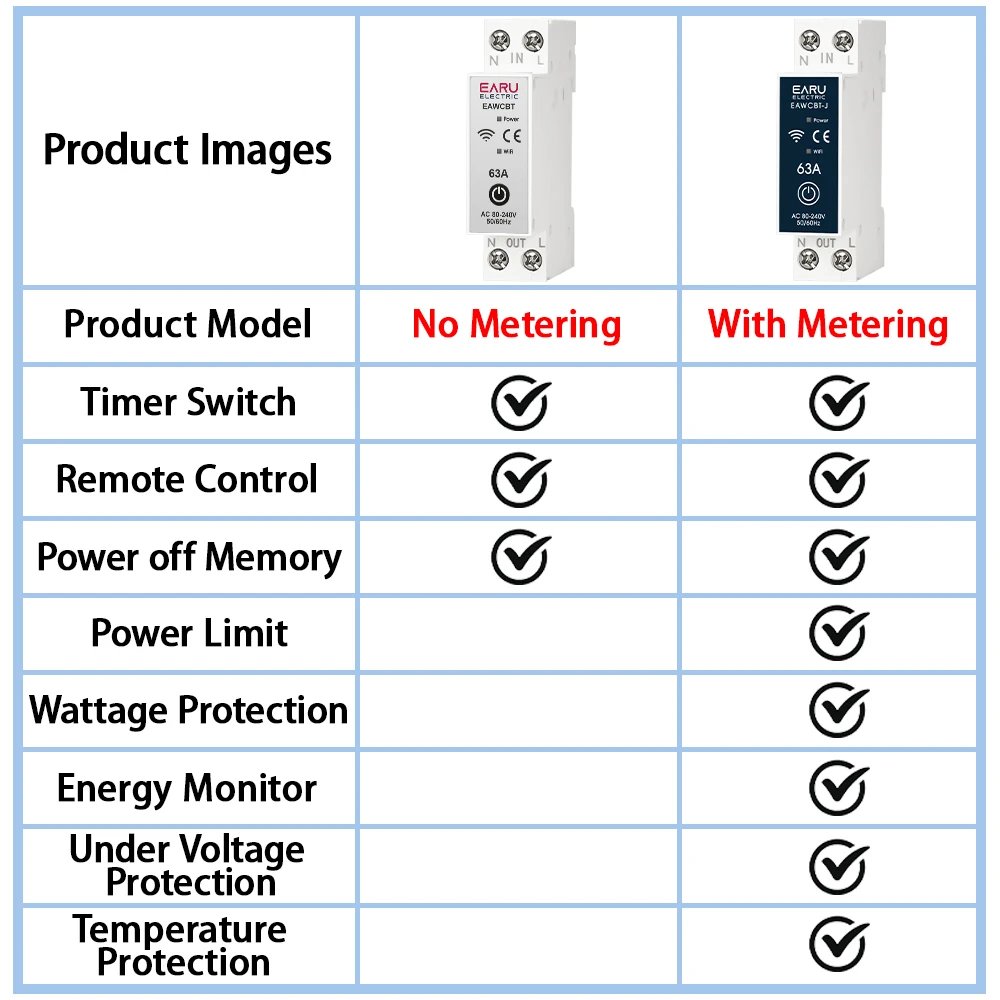

Choose the Correct Version

The product is available with or without energy metering. Check the selected version and current rating carefully before ordering.

Version Without Metering
Remote on and off control
Timer and scheduled switching
Power failure memory

Version With Metering
Energy consumption monitoring
Adjustable power limit
Adjustable over-voltage protection
Adjustable under-voltage protection
Adjustable temperature protection
Remote on and off control
Timer and scheduled switching
Power failure memory

Remote App Control

Connect the circuit breaker to a 2.4GHz WiFi network to control it through a compatible smartphone. Switch the connected circuit on or off and manage its available settings from anywhere with an internet connection.

The device works with the Tuya Smart and Smart Life apps on compatible Android and iOS devices.

Timer and Smart Scheduling

Create automatic operating schedules for the connected circuit. Timer controls can be used to switch compatible electrical equipment on or off at selected times.

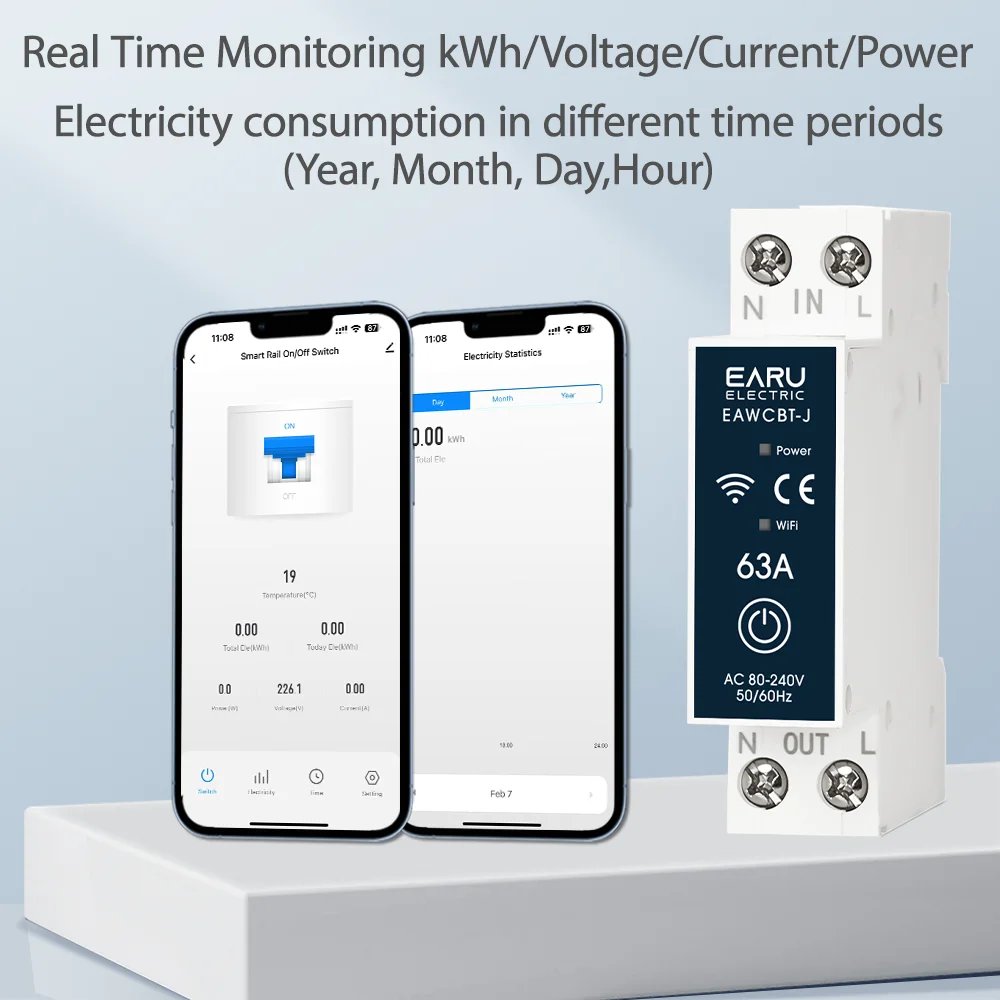

Optional Energy Monitoring

Models with metering allow you to view electrical information and energy consumption through the compatible mobile app. This provides a convenient way to check the operating conditions of the connected circuit.

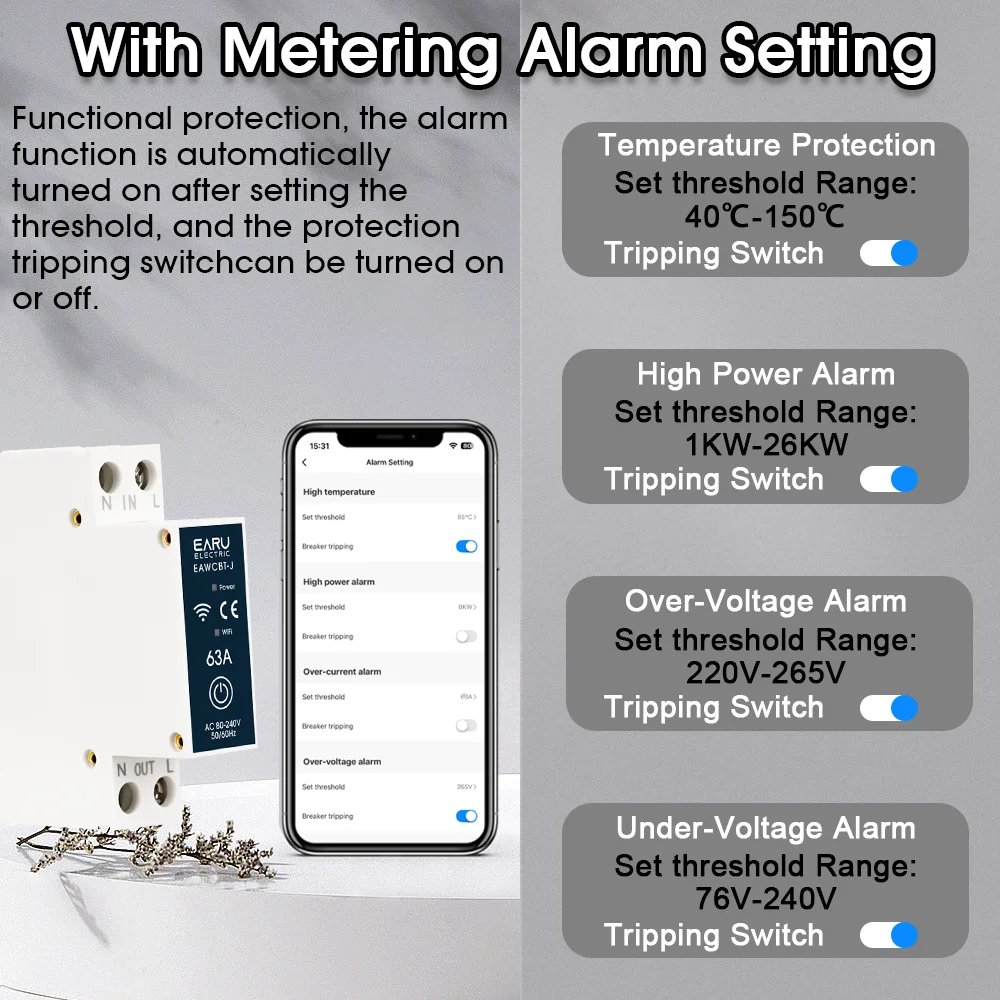

Adjustable Protection Settings

Metering models include adjustable electrical limits. The device can be configured to respond when a selected value moves outside the permitted range.

Power limit: 1kW–26kW
Over-voltage setting: 220V–265V
Under-voltage setting: 76V–240V
Temperature setting: 40°C–150°C

These adjustable functions are available only with the metering version.

Alexa and Google Assistant Voice Control

Connect the device to a compatible Amazon Alexa or Google Assistant system to switch the circuit using voice commands.

Current Ratings from 6A to 63A

Select the current rating that matches the intended circuit and electrical installation. Available options range from 6A to 63A, depending on the version selected.

The required rating should be confirmed by a qualified electrician before installation.

Standard DIN Rail Installation

The device is designed for installation on a standard 35mm DIN rail and uses a 1P+N live and neutral connection.

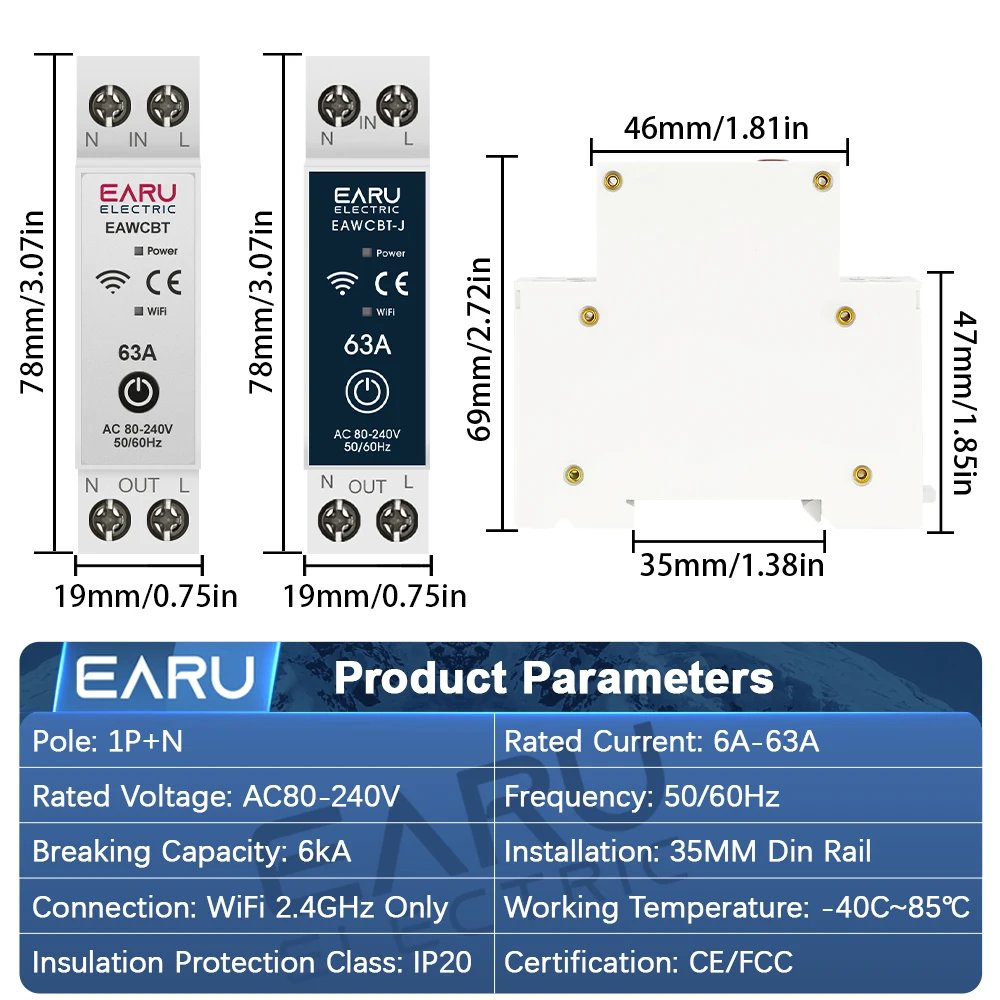

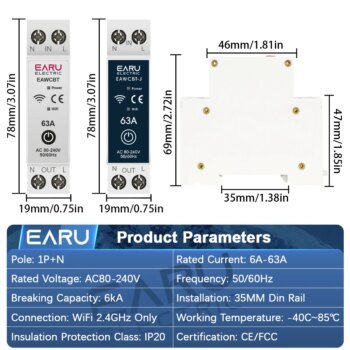

Technical Specifications

Product type: WiFi smart circuit breaker and remote switch
Connection: 1P+N, live and neutral
Available current ratings: 6A–63A
Operating voltage: AC 80–240V
Frequency: 50/60Hz
Wireless connection: 2.4GHz WiFi
5GHz WiFi: Not supported
Compatible apps: Tuya Smart and Smart Life
Supported mobile systems: Android and iOS
Voice compatibility: Amazon Alexa and Google Assistant
Installation: Standard 35mm DIN rail
Mechanical life: More than 100,000 switching operations

Wiring Requirements

The incoming power supply must be connected at the top of the device. Both live and neutral connections are required.

Electrical installation and configuration must be completed by a qualified electrician in accordance with local regulations.

Package Contents

1 × WiFi smart circuit breaker in the selected version and current rating

Important Information

Models without metering do not include energy monitoring or adjustable power, voltage and temperature protection settings.

Please confirm the required current rating, selected version, available functions and wiring requirements before placing your order.

Item specifics

Weight	10 kg
Dimensions	10 cm
Brand Name	EARU
Does it include wireless functionality?	Yes
Does it include a Battery?	No
High-concerned chemical	None
EU LVD Voltage	High voltage: Above 50Vac or 75Vdc
Origin	Mainland China
Rated Voltage	220V
is_customized	Yes
Type	Circuit breaker
Model Number	EAWBCT-J
Is Smart Device	Yes
Certification	FCC
Over-Under Protection	220-265V(Adjustable)
Under-Voltage Protection	76-240V(Adjustable)
Power Protection	1-26KW(Adjustable)
Temperature Protection	40℃-150℃(Adjustable)
Working Voltage	AC80-240V
Frequency	50/60Hz
App	Tuya&Smart Life
Installation	35MM Din Rail
Mechanical Life	Over 100000 Times
Fuction 1	On/Off Switch
Fuction 2	Timer Relay Switch
Fuction 3	Voltmeter
Fuction 4	Ammeter
Fuction 5	Power Meter
Fuction 6	Power Limit
Fuction 7	Share
Fuction 8	Voice Control
Fuction 9	Power Failure Memory
Fuction 10	Temperature Protection
Protocol	WiFi 2.4GHz Only
Working Temperature	-40℃~85℃
Choice	yes
