Three-Phase WiFi Smart Energy Meter 100A with Tuya App & External CT

£78.29

102 in stock

3P4W WiFi Smart Energy Meter – 100A | Bi-Directional Monitoring with Tuya App

Upgrade your energy monitoring capabilities with this advanced 3 Phase 4 Wire WiFi Smart Meter, designed for both residential and commercial applications. Suitable for AC 3×230/400V 50/60Hz systems with a rated current of up to 100A, this meter offers real-time, bi-directional energy tracking for both consumption from the grid and energy fed back into the system from solar panels or other renewable sources.

Reliable and Smart Power Monitoring

Equipped with a split-core current transformer and compatible with the Tuya Smart App, this smart meter allows you to monitor your power usage from anywhere at any time. Whether you’re tracking your home’s electricity use or managing energy in a commercial facility, this meter provides accurate and detailed insights directly to your mobile device.

Key Benefits

  • Real-Time Monitoring: View current (A), voltage (V), active and reactive power (kW/kVar), power factor, and total energy data live on your phone.
  • Two-Way Metering: Track both incoming power usage and outgoing energy production from solar installations.
  • Remote Access: Monitor and manage your energy data from anywhere using the Tuya Smart App.
  • Easy Device Sharing: Grant access to your team or family members for collaborative energy management.
  • Split Core CT Sensor: Quick installation without disconnecting the circuit – range 0–100A, with 0.5 accuracy and 1000/1 ratio.

Technical Specifications

  • Poles: Three Phase Four Wire (4P)
  • Rated Voltage: AC 3x230V/400V (Operating range: 0.8~1.1Un)
  • Rated Current: Up to 100A
  • Frequency: 50/60Hz
  • Self Consumption: 2.2VA / 0.7W
  • App Compatibility: Tuya Smart
  • Installation: 35mm DIN-rail mount

Ideal for Various Applications

This WiFi smart energy meter is perfect for use in homes with solar systems, rental properties, office buildings, small factories, and more. Whether you’re looking to reduce energy bills, track solar performance, or manage energy usage across multiple locations, this device provides an affordable and flexible solution.

Full Monitoring Features Include:

  • Total active energy
  • Total forward active energy
  • Total reverse active energy
  • Real-time current, voltage, and power readings
  • Total active and reactive power
  • Overall power factor

Control, Share, and Optimise

Gain full control of your energy data with smart features that empower you to make cost-effective and environmentally friendly decisions. With easy sharing and secure remote access, the whole household or management team can stay informed and in control.

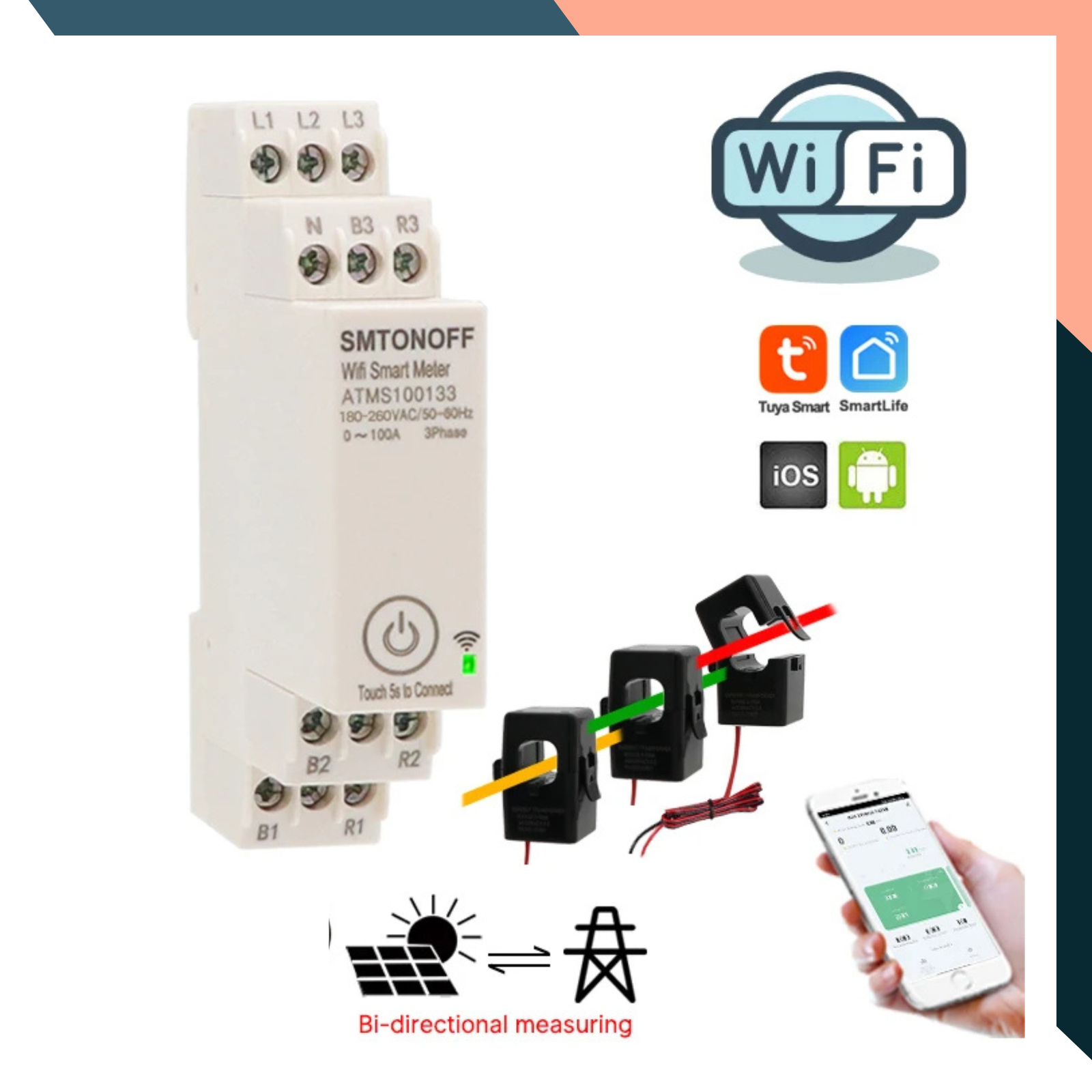

Smart energy meter display and current transformer
Three phase four wire smart meter front view
Split core current transformer included
Back view of smart WiFi meter with wiring guide

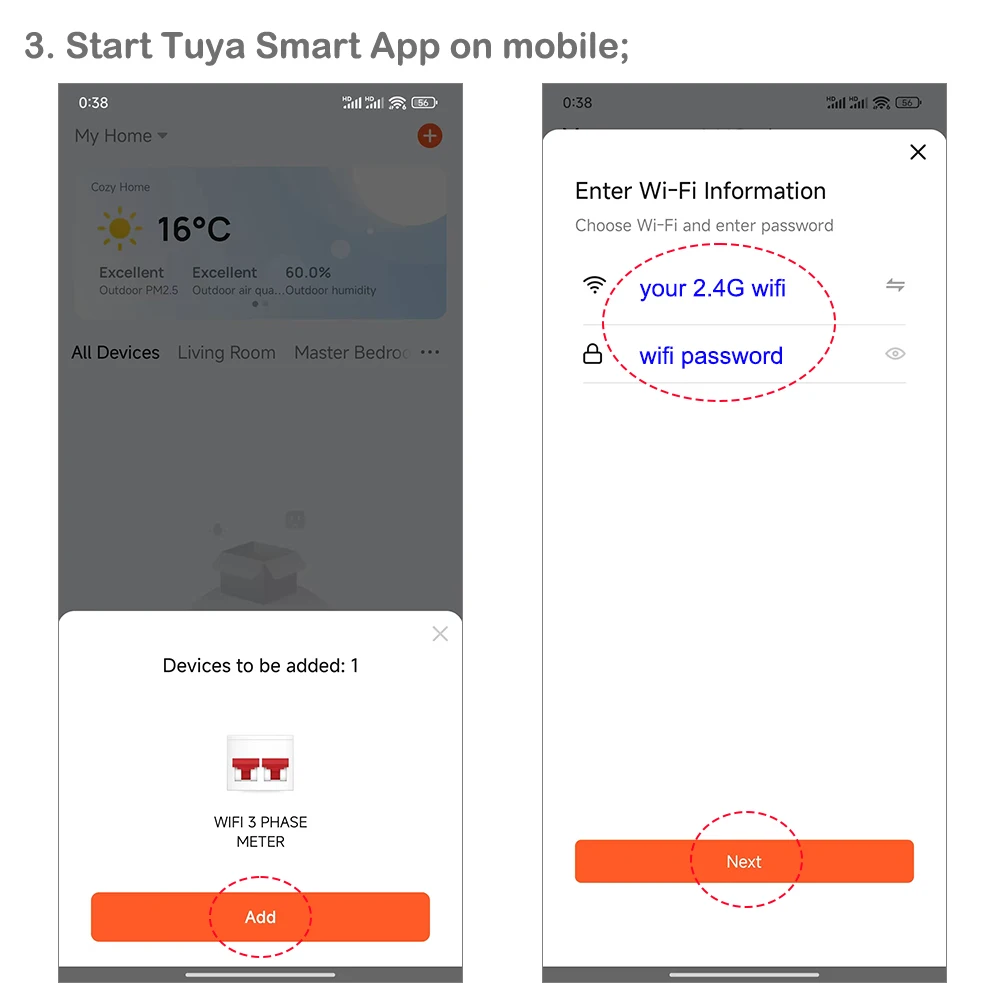

Energy consumption monitoring on Tuya App
Smart meter showing real-time power usage
Smart energy meter ideal for home or business
Compact design for DIN rail installation
WiFi energy meter installation accessories
Three phase smart meter overview
Electric meter technical diagram
Smart meter supports Tuya Smart App
Real-time power factor and energy stats
Smart WiFi meter for solar and grid systems

Weight 12 kg
Dimensions 10 cm
Brand Name

SMTONOFF

Communication method

Wi-Fi

Hign-concerned Chemical

None

Origin

Mainland China

Certification

CE
