Infrared Warm Floor Cable – Electric Carbon Heating Wire, 33ohm/m, 3.0mm

1 review
100% of buyers enjoyed this product! 59 orders

Price range: £24.39 through £95.09

100M-1Roll200M-1Roll50M- 1Roll
Clear
SKU:
1005006973987790

100m Infrared Warm Floor Cable – Electric Carbon Heating Wire, 33ohm/m, 3.0mm

The carbon fiber heating wire is a versatile and efficient solution for various heating needs. Its advanced technology ensures reliable performance, making it ideal for floor heating systems and other applications. With its ability to emit infrared heat and its robust construction, this heating wire provides a safe and consistent heat source. Below, we explore the technical data, usage guide, power calculation, and package contents to help you understand the full potential of this product.

Technical Data

Understanding the technical specifications of the carbon fiber heating wire is crucial for optimal usage. Here are the key details:

  • Conductor Resistance: 33±10% Ω/m
  • Infrared Wavelength: 8UM-18UM
  • Color: Red
  • Diameter: 3±0.1mm (Thicker and Safer)
  • Max Power: 25W/m
  • Leakage Current: 0.05mA/m
  • Heating Conductor: 12K
  • Heating Temperature: Based on usage length
  • Max Enduring Temperature: 200°C
  • Insulating Material: Silicone Rubber
  • Product Name: Carbon Fiber Heating Wire

Power and Heating Temperature

The power output and corresponding heating temperature of the carbon fiber heating wire depend on its length. Here’s a detailed guide:

  • 5W/m: Temperature is about 30~40°C
  • 10W/m: Temperature is about 40~50°C
  • 15W/m: Temperature is about 50~60°C
  • 20W/m: Temperature is about 60~70°C
  • 25W/m: Temperature is about 70~90°C

These temperature ranges provide flexibility, allowing you to choose the appropriate power setting for your specific heating requirements. Please note that these values are approximate and may vary based on different test conditions.

Power Calculation

To ensure you are using the correct power settings for your carbon fiber heating wire, follow these calculation methods based on cable length and resistance:

  1. Using 15m of 12K carbon fiber cable on 220V:
    • Calculation: 220V×220V÷(15m×33Ω)=100W220V times 220V div (15m times 33Ω) = 100W
    • Result: 100W÷15m=6.66W/m100W div 15m = 6.66W/m
  2. Using 10m of 12K carbon fiber cable on 220V:
    • Calculation: 220V×220V÷(10m×33Ω)=150W220V times 220V div (10m times 33Ω) = 150W
    • Result: 150W÷10m=15W/m150W div 10m = 15W/m

The general formula for calculating the electric power of the cable is:

Voltage×Voltage÷Resistance=Electric Powertext{Voltage} times text{Voltage} div text{Resistance} = text{Electric Power}

By using this formula, you can easily determine the appropriate power setting for your heating needs, ensuring efficient and safe operation.

Applications and Benefits

The carbon fiber heating wire is designed to cater to a wide range of heating applications. Here are some of the key benefits and uses:

  • Floor Heating Systems: Ideal for underfloor heating, providing even and consistent heat distribution.
  • Safe and Reliable: The silicone rubber insulation and robust construction ensure durability and safety.
  • Infrared Heating: The infrared wavelength range of 8UM-18UM offers efficient heating, promoting better heat penetration and energy efficiency.
  • Customizable Lengths: With the ability to cut the wire to specific lengths, it provides flexibility for various installation requirements.
  • Energy Efficiency: The low leakage current (0.05mA/m) and precise power settings contribute to energy savings and reduced operational costs.

Installation Tips

To get the best performance out of your carbon fiber heating wire, follow these installation tips:

  1. Ensure Proper Insulation: Proper insulation of the area where the heating wire is installed will enhance efficiency and reduce heat loss.
  2. Avoid Overlapping: Make sure the heating wire is evenly spaced and does not overlap to prevent overheating.
  3. Secure the Wire: Use appropriate clips or adhesives to secure the wire in place, ensuring it stays in position during installation and use.
  4. Monitor Temperature: Use a thermostat to monitor and control the temperature, ensuring it remains within safe operating limits.

Package Includes

When you purchase the 100m carbon fiber heating wire, you receive:

  • 100m Cable: The primary heating wire, ready for installation.
  • 20 pcs Copper Tube: Accessories to assist in the installation process.
  • 20 pcs Sleeves: Additional components to ensure a secure and effective installation.

This comprehensive package provides everything you need for a successful installation, allowing you to enjoy the benefits of efficient and reliable heating.

In conclusion, the carbon fiber heating wire is an excellent choice for various heating applications, offering flexibility, safety, and efficiency. By understanding its technical specifications, proper usage, and installation tips, you can maximize its performance and enjoy a warm and comfortable environment.

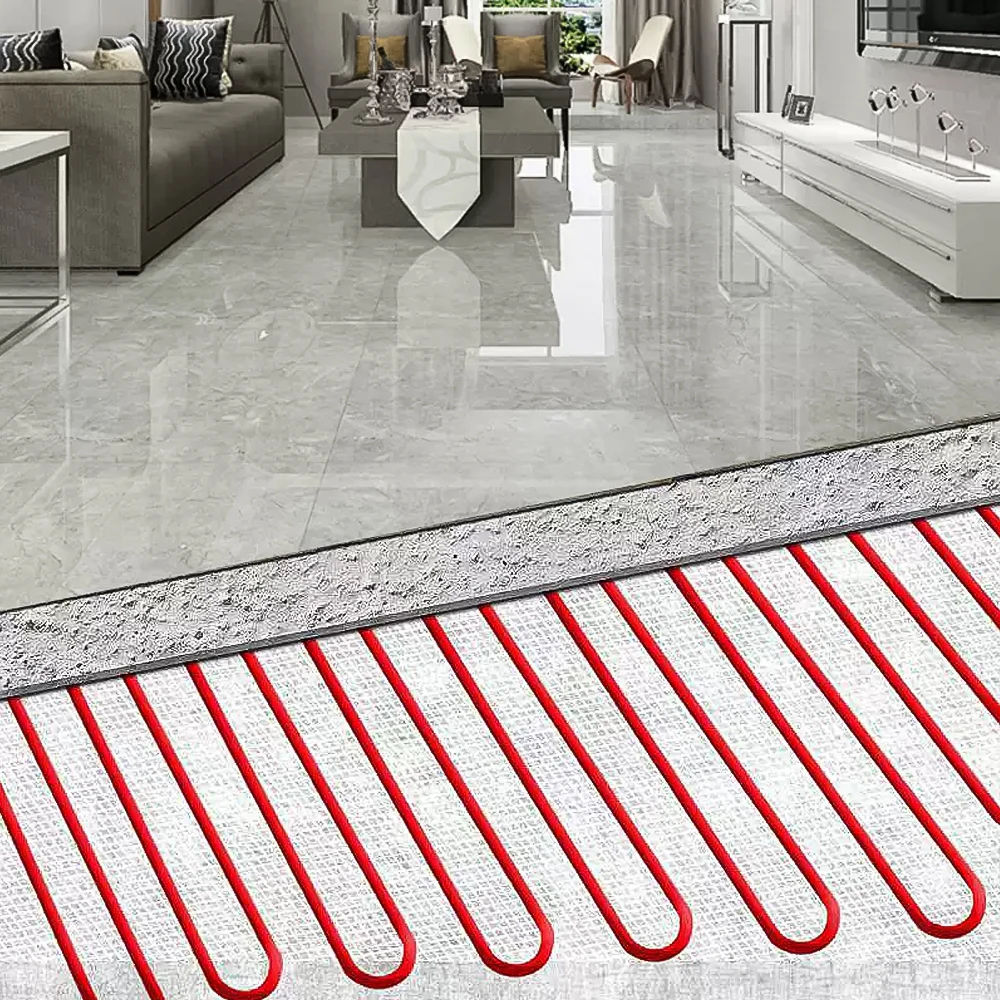

Carbon fiber heating wire installed in floor setup
Detailed view of carbon fiber heating wire with insulation

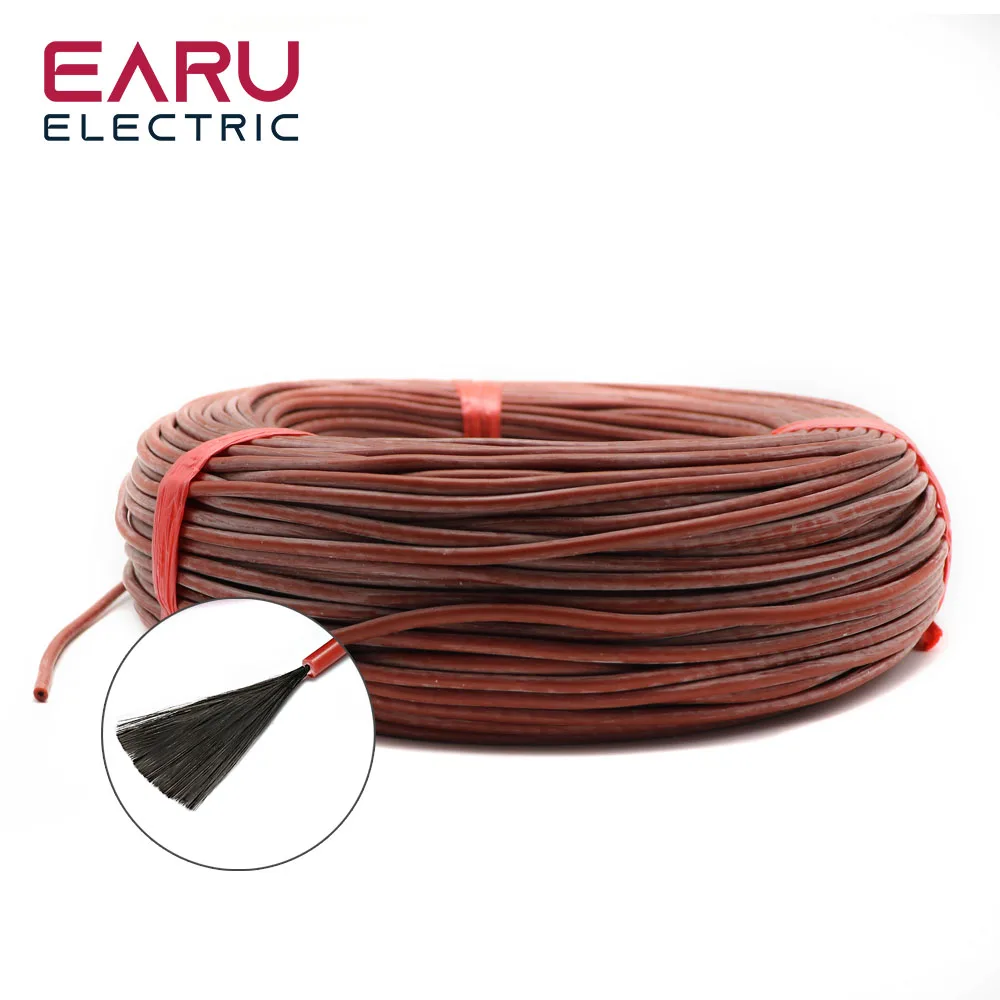

Close-up of carbon fiber heating wire showing thickness and structure

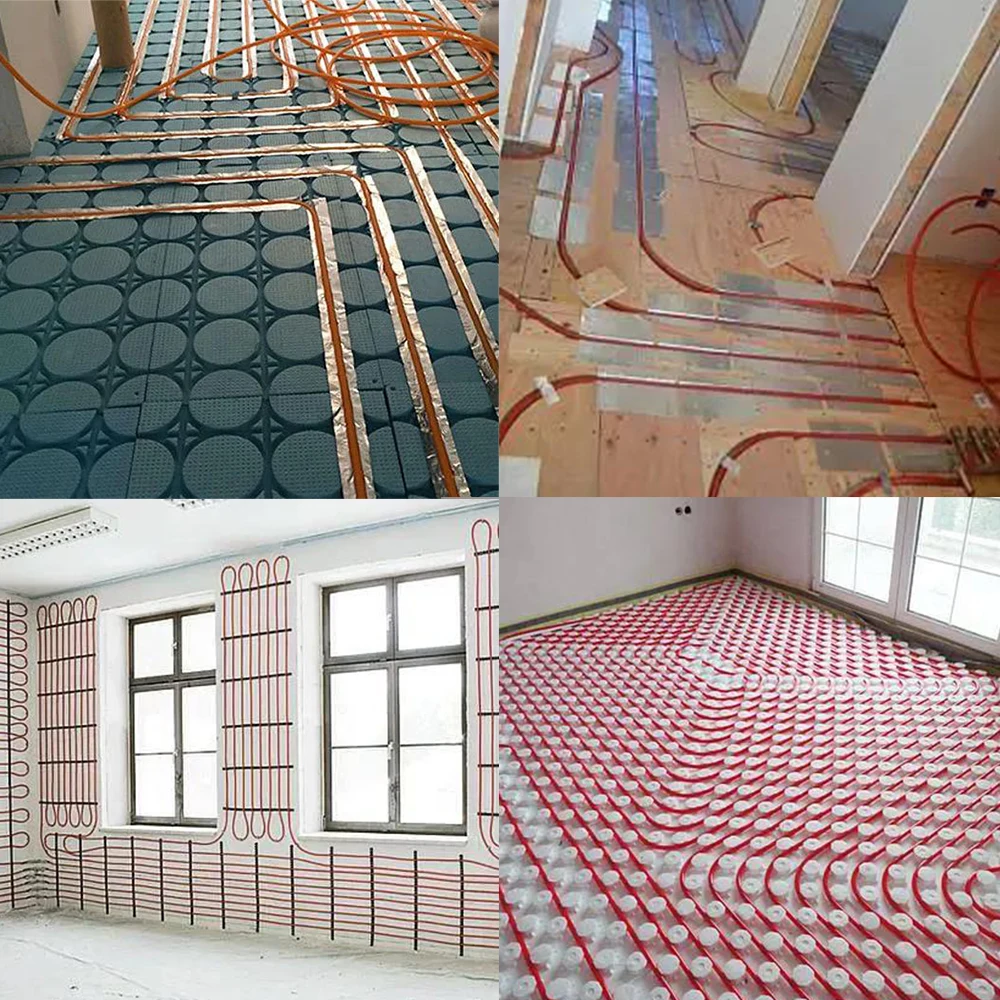

Installation process of carbon fiber heating wire in a floor system

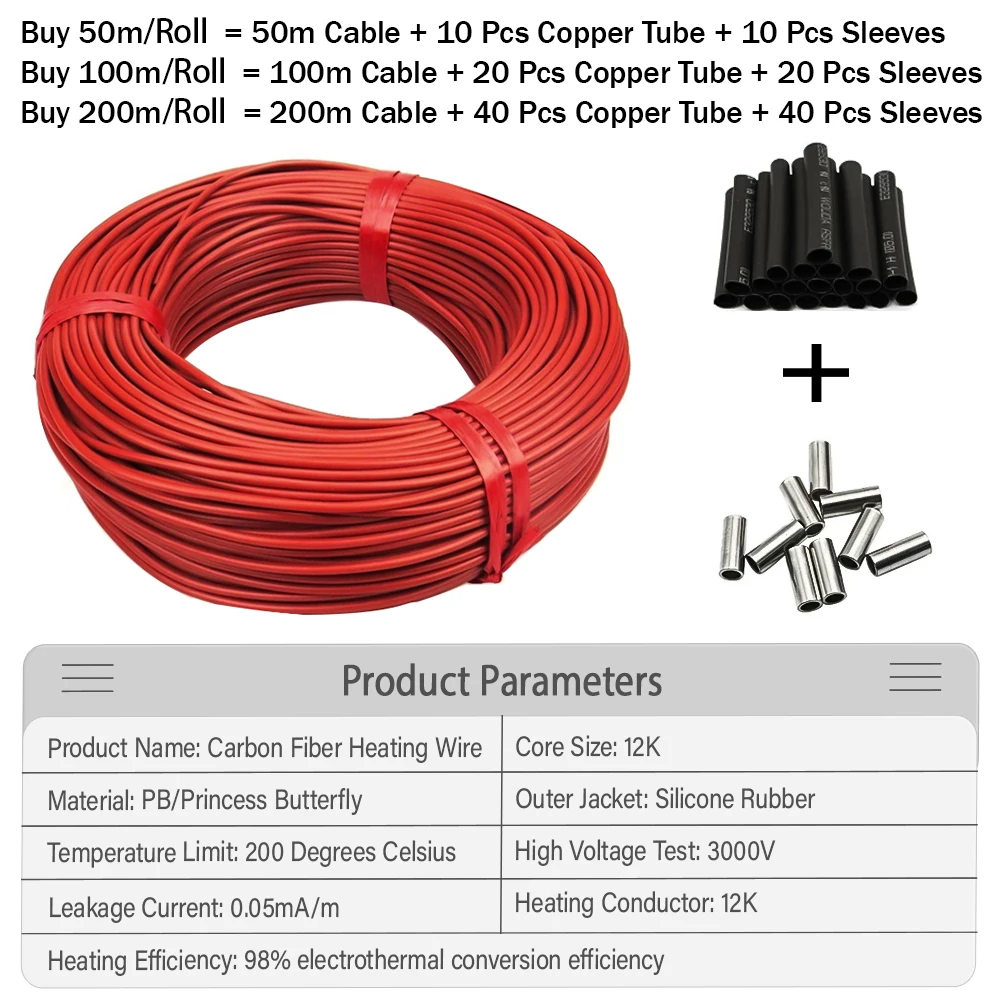

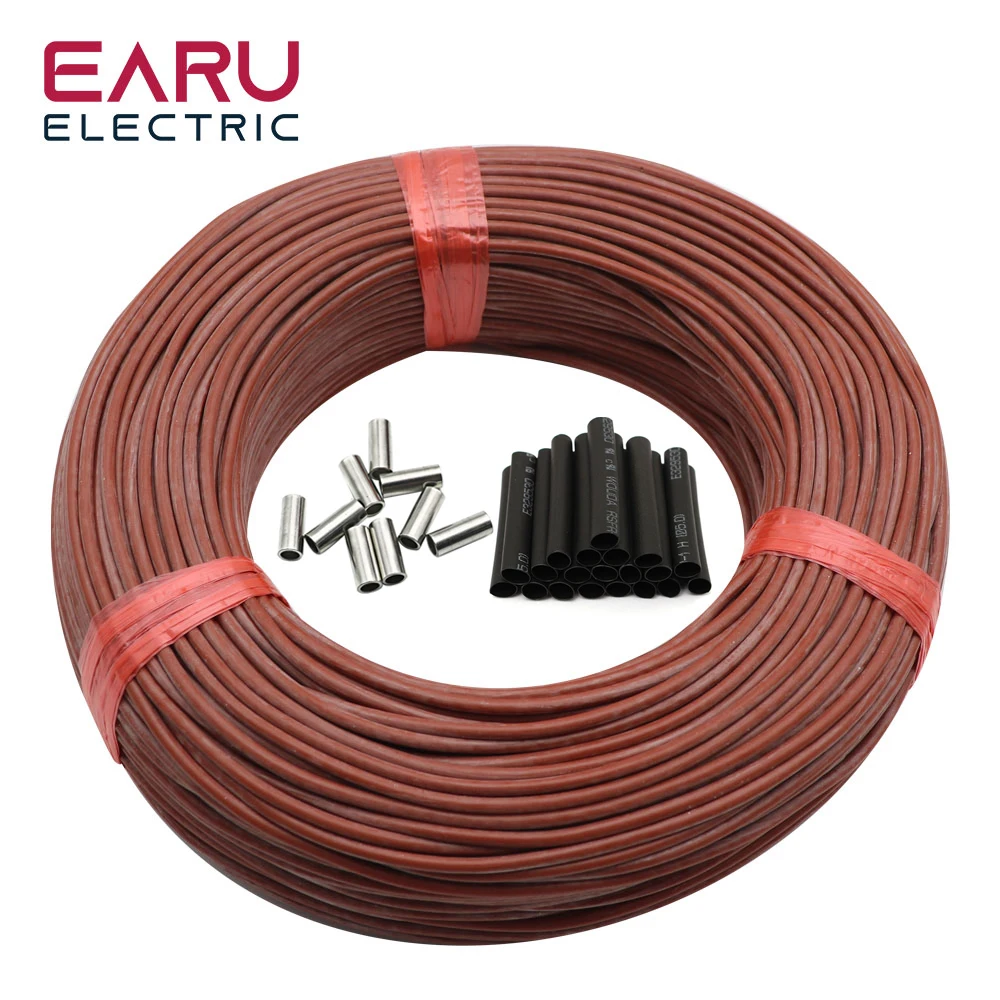

Carbon fiber heating wire with copper tubes and sleeves for installation



Weight 1 kg
Dimensions 1 cm
Brand Name

EARUELETRIC

Hign-concerned Chemical

None

Material

Anti-flammable PC

Origin

Mainland China

Power

150w/m2

Type

Floor Heating Parts

Floor Heating Part Type

Floor Heating Cables

Model Number

AG-12K

Certification

CE

Core size

12K

Resistance

33 Ohm/m

Outer jacket

Silicone rubber

Voltage

7~300 V
