2P RCBO Type AC A B 30mA 230V Residual Current Breaker EV Charger

300 orders

Price range: £17.09 through £57.69

Type A 30mAType AC 30mAType B 30mA
40A63A
Clear

2P RCBO Type AC / A / B 30mA 230V Residual Current Circuit Breaker

2P RCBO residual current circuit breaker is designed to provide combined protection against earth leakage, overload and short circuit faults in electrical installations. It integrates RCBO, RCCB and MCB functions in one electronic device.

This model supports Type AC, Type A and Type B residual current detection and operates at 230V, 50/60Hz. It is suitable for applications requiring reliable leakage protection, including installations where EV chargers are used.

The breaker is rail mounted and designed for long service life, offering stable performance with a mechanical lifespan of up to 20,000 cycles. It provides dependable protection against insulation faults and helps improve overall electrical safety.

Key Features

  • Residual current leakage protection
  • Overload and short circuit protection
  • 2-pole configuration

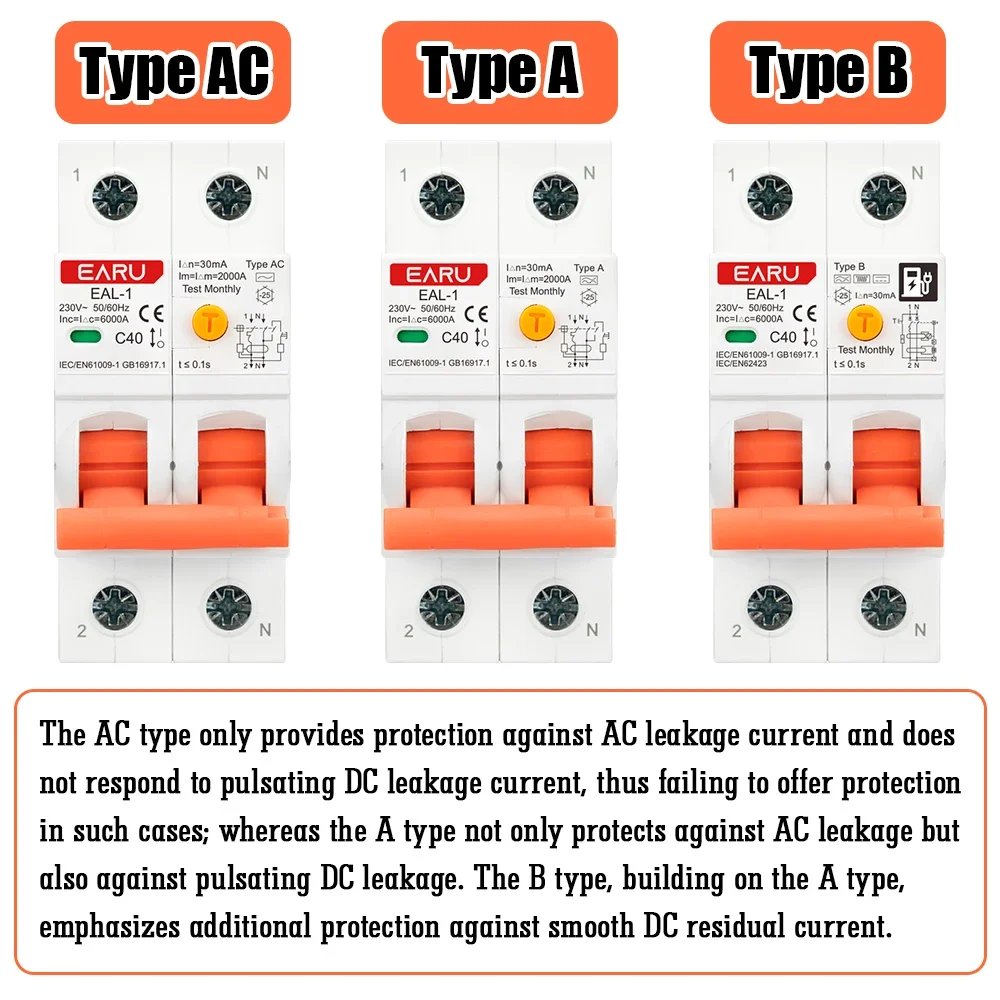

  • Type AC / Type A / Type B options
  • Rated voltage: 230V
  • Rated frequency: 50/60Hz
  • Rated short-circuit capacity: 6kA (6000A)
  • Rail mounted design

Technical Information

  • Product series: EAL-1
  • Mechanical lifespan: up to 20,000 cycles
  • Certification: CE
  • Standards: IEC/EN 61009-1, GB16917.1

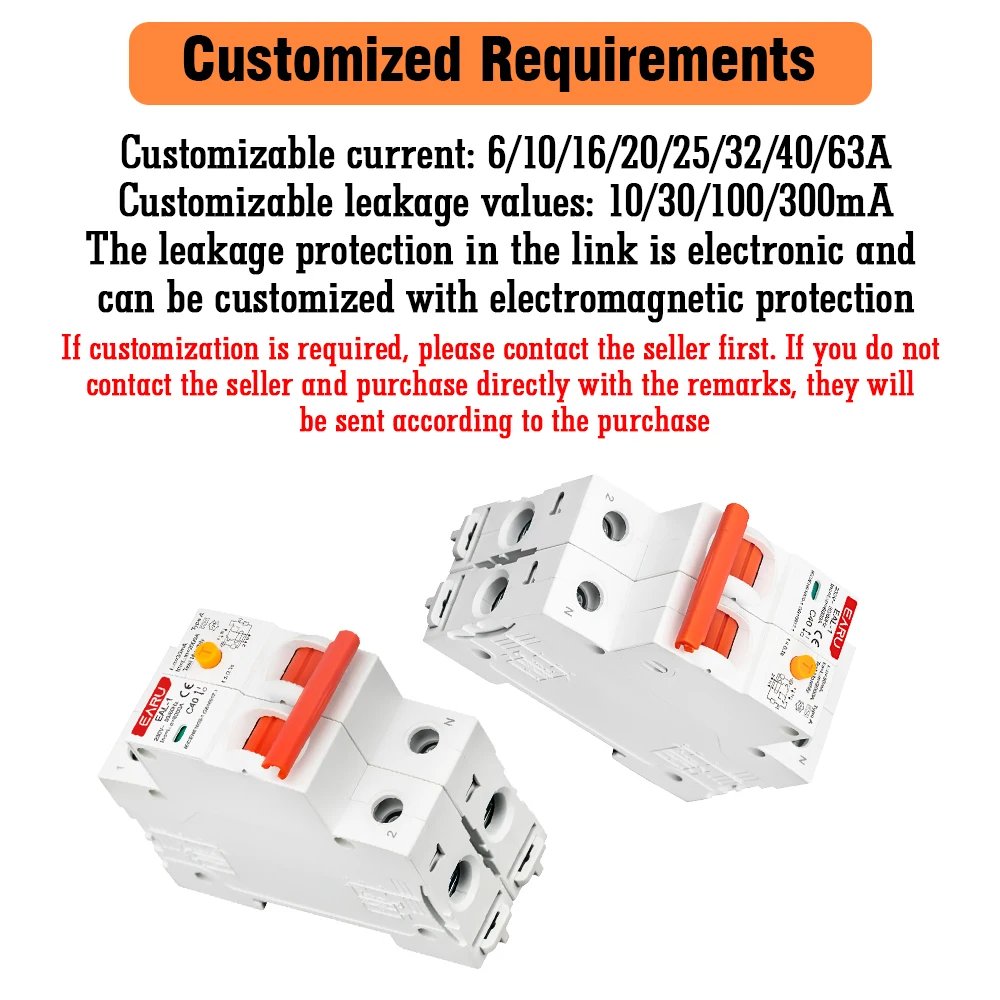

Available Options

  • Rated current options: 6A / 10A / 16A / 20A / 25A / 32A / 40A / 50A / 63A
  • Leakage current options: 10mA / 30mA / 100mA / 300mA

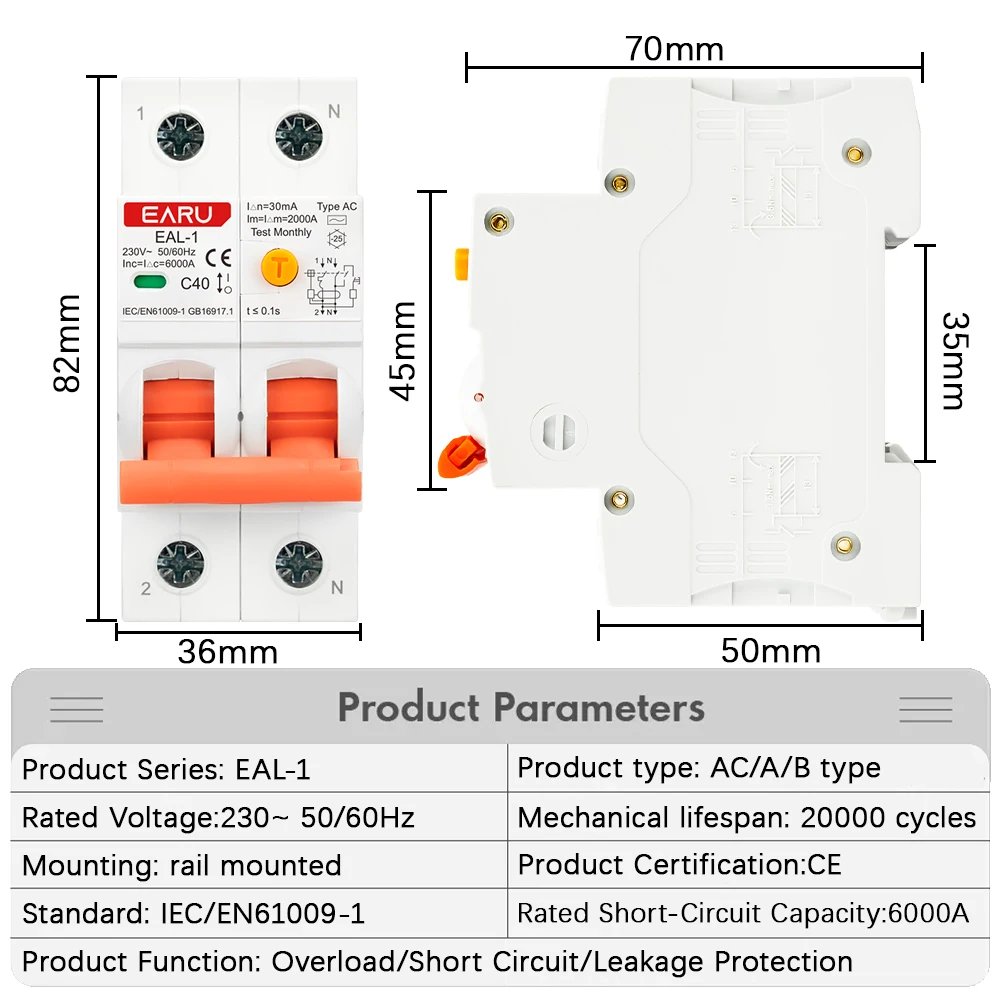

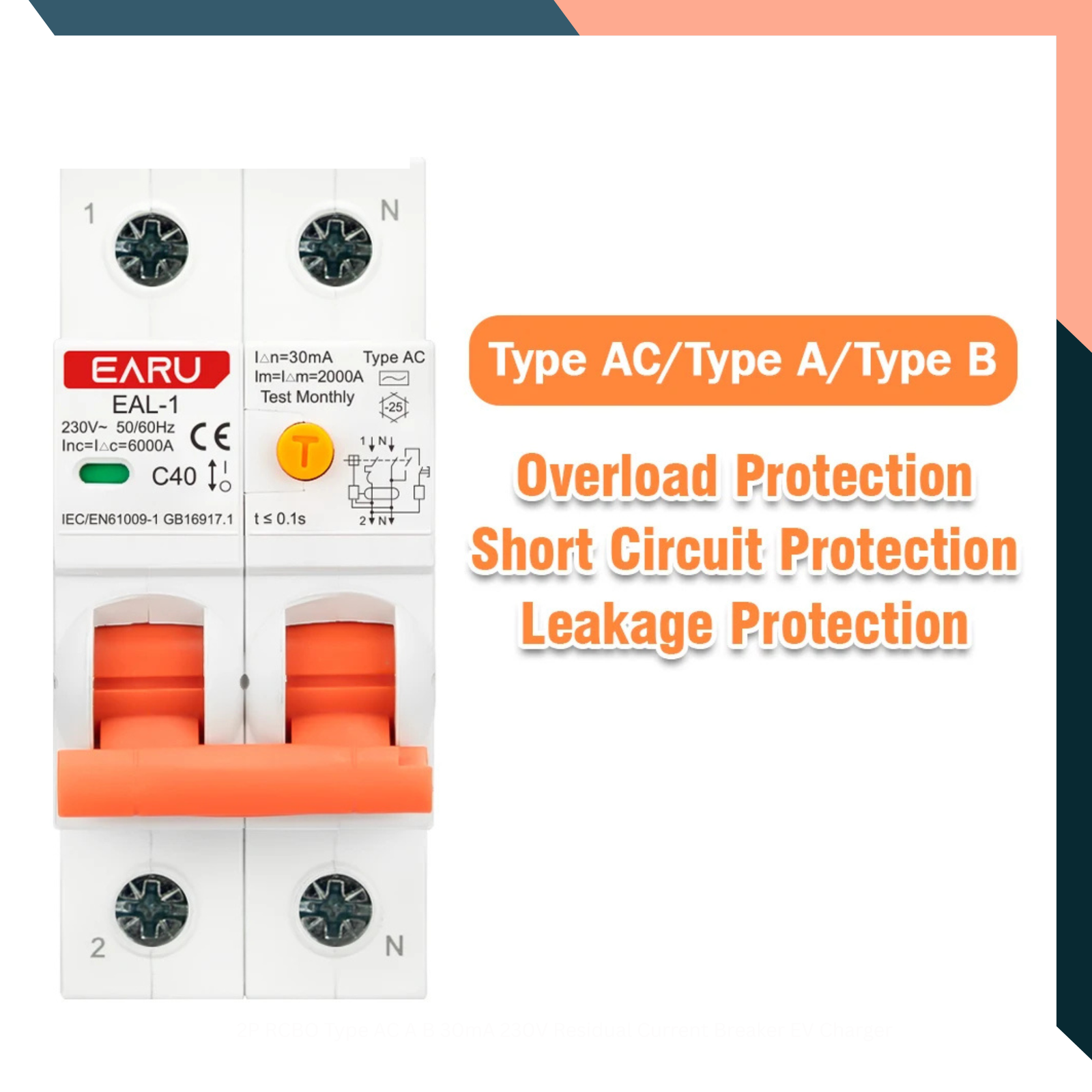

2P RCBO Type AC A B 30mA residual current circuit breaker front view
2P RCBO Type AC A B leakage protection device

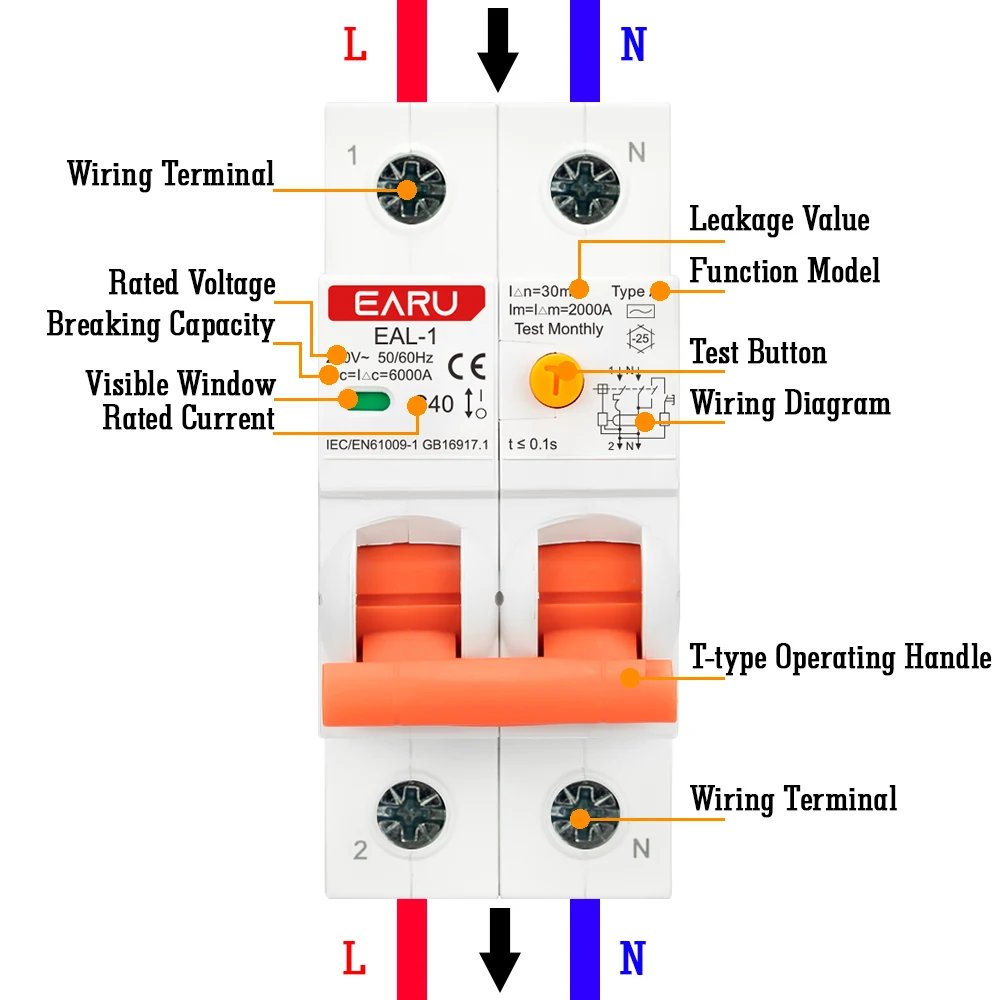

2P RCBO Type AC A B terminal and wiring details
2P RCBO Type AC A B rail mounted installation
2P RCBO Type AC A B electrical safety device housing
2P RCBO Type AC A B circuit breaker side view
2P RCBO Type AC A B marking and ratings
2P RCBO Type AC A B residual current protection
2P RCBO Type AC A B circuit breaker overview
2P RCBO Type AC A B internal structure view
2P RCBO Type AC A B electrical protection unit
2P RCBO Type AC A B product application example

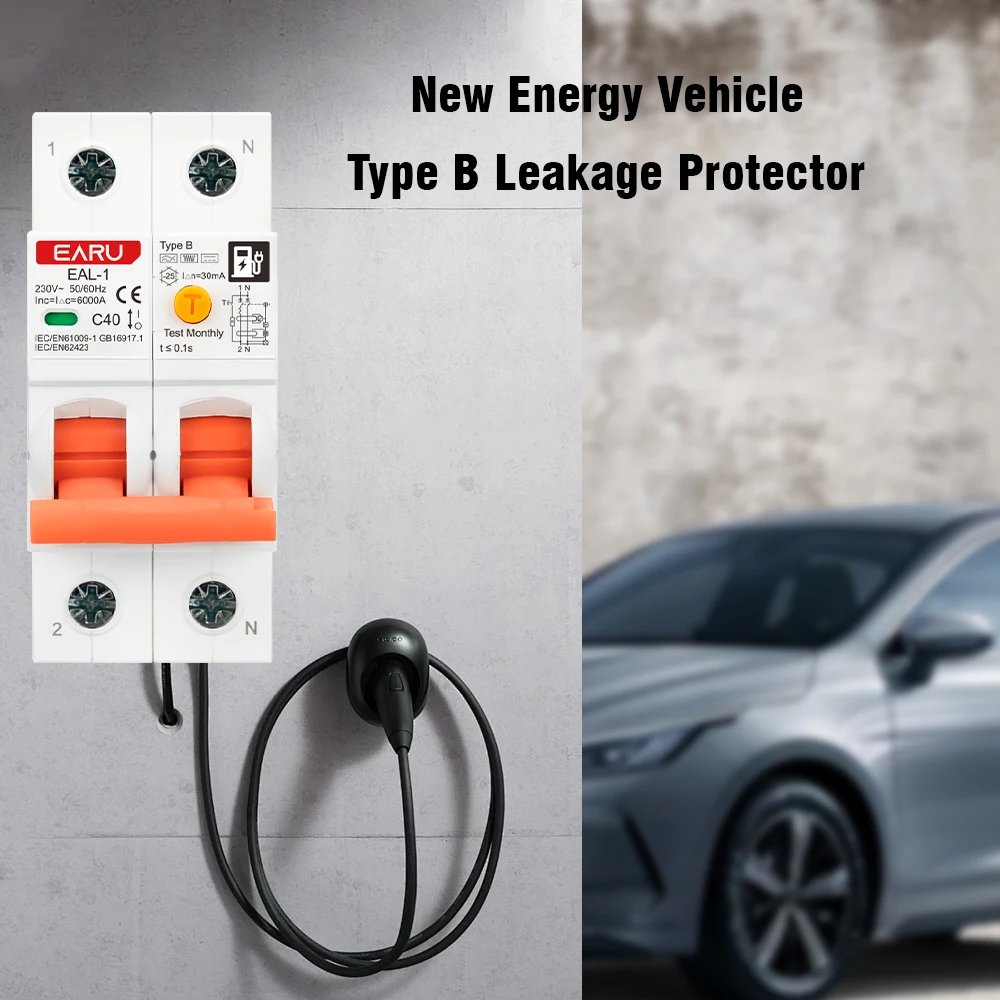

2P RCBO Type AC A B EV charger application
2P RCBO Type AC A B leakage protection switch
2P RCBO Type AC A B electrical circuit breaker
2P RCBO Type AC A B installation example
2P RCBO Type AC A B safety protection device
2P RCBO Type AC A B residual current breaker housing

Weight 10 kg
Dimensions 10 cm
Brand Name

EARU

High-concerned chemical

None

Rated Voltage

220V

Model Number

EAL-1

Is Smart Device

No

Certification

CE

Model

RCD RCCB RCBO MCB

Circuit Breaker Type

Electronic leakage protection circuit breaker

Type

Type AC/Type A/Type B

Rated Current

6/10/16/20/25/32/40/50/63A

Leakage Value

10/30/100/300mA
